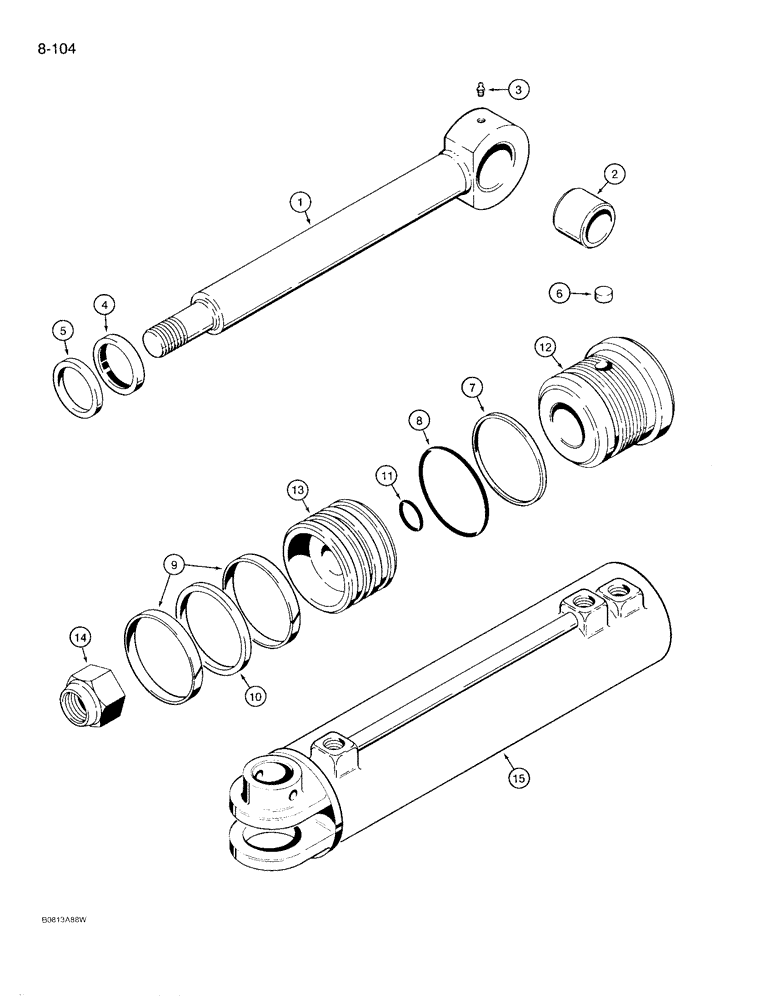

Запчасти Case 780D (8-104) - LOADER CLAM CYLINDER (08) - HYDRAULICS

D143217

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, clam, Includes: Ref. 1 - 15

2шт.

1

D143237

ROD ASSY.

ROD ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

D143240

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

D143215

KIT

- seal, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - gland

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, Serial Range: gland-tube

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: gland-tube

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

12

D143238

GLAND

- cylinder

1шт.

13

D143239

PISTON

- cylinder

1шт.

14

D143241

NUT

- hex, special

1шт.

15

D143216

TUBE

- cylinder

1шт.
