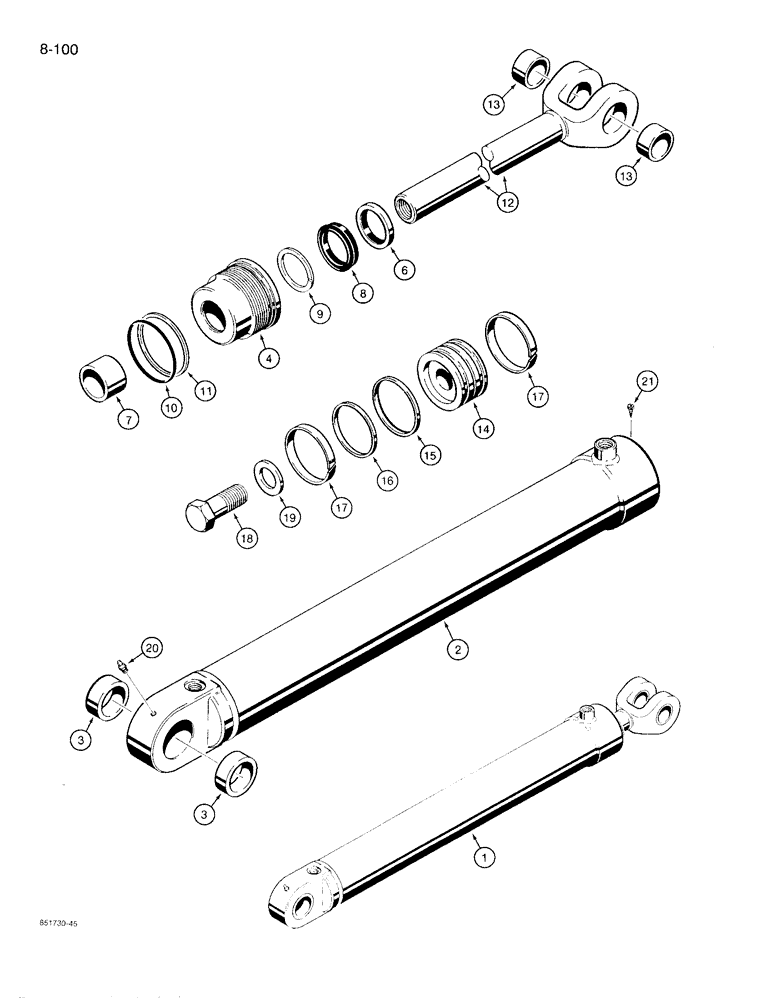

Запчасти Case 780D (8-100) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G103073

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4" (102 mm) ID x 30" (762 mm) stroke, lift, Includes: Ref. 2 - 21

2шт.

2

G103074

TUBE,39.79" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G34984

BUSHING

- tube

2шт.

G104941

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109505.

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit P/N G109505.

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of Seal Kit P/N G109505.

1шт.

8

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G109086

RING

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109505.

1шт.

10

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Gland -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

Part of Seal Kit P/N G109505.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N G109505.

1шт.

12

1340867C1

ROD

ASSEMBLY - piston, 2-1/4" (57 mm) O.D., Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100686

PISTON

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109505.

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N G109505.

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N G109505.

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, no longer included with the cylinder assembly, purchase separately

1шт.

21

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 - 32 x 3/8 inch

1шт.

G109505

KIT

- seal, Includes: Ref. 6, 7, 8 (P/N G107924), 9 - 11 and 15 - 17

1шт.
