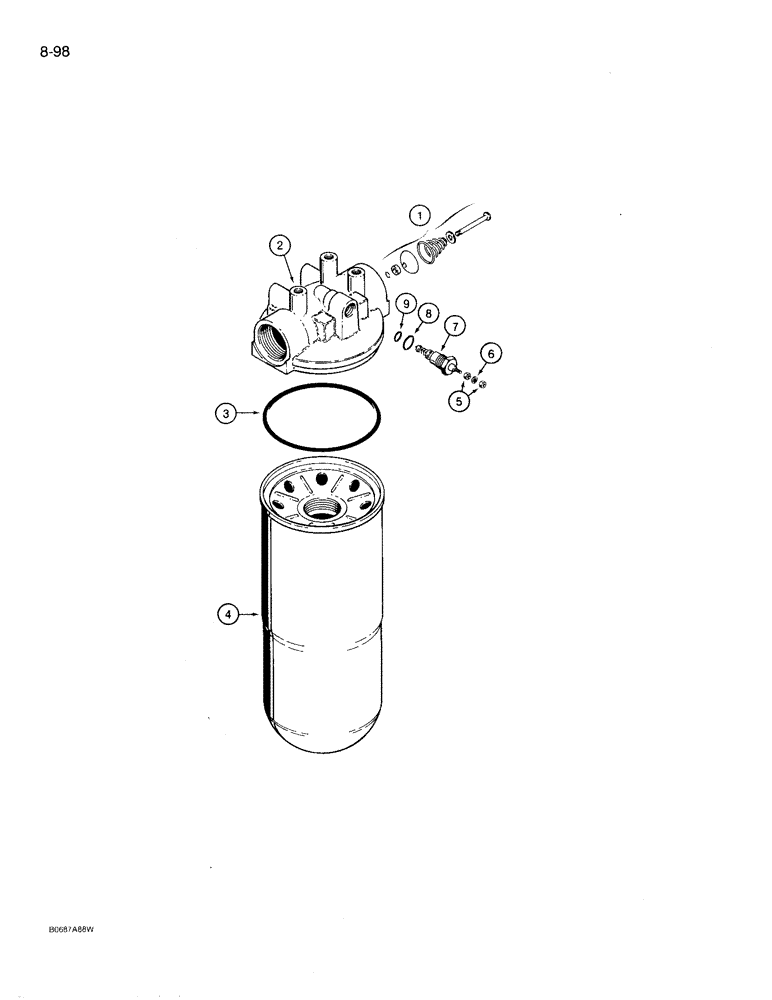

Запчасти Case 780D (8-098) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D141131

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- filter to head

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

A181991

SWITCH

RESTRICTION INDICATOR ASSEMBLY - electric, Includes: Ref. 5 - 9

1шт.

5

129-667

NUT,#10-32, LH

2шт.

6

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electric

1шт.

9

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, includes (2) A23316 O-ring (Ref. 3) and (2) A177605 filter element (Ref. 4)

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
