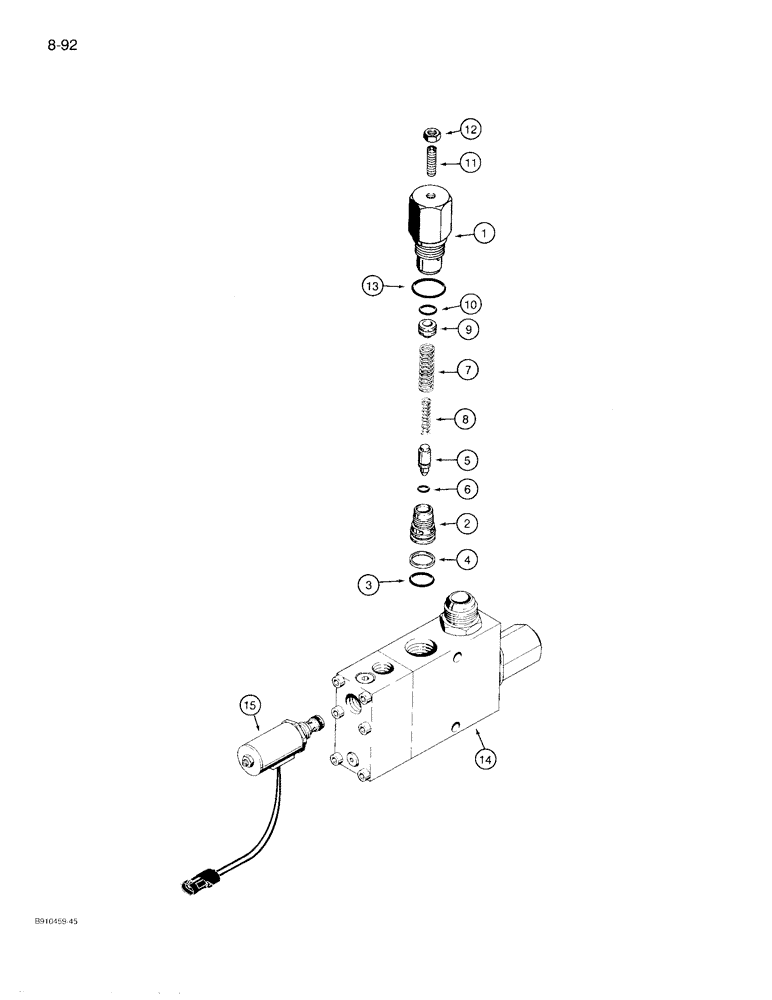

Запчасти Case 780D (8-092) - BOOM LOCK SOLENOID VALVE, CYLINDER MOUNTED (08) - HYDRAULICS

D150443

VALVE

ASSEMBLY - solenoid, backhoe boom lock, includes (2) 321-6046 warning decals, see Figure 9-136 for decal, Includes: Ref. 1 - 15

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF ASSEMBLY - circuit, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1 - 13

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

15

D150809

SOLENOID

- relief, 12 volt, with connector

1шт.

D150781

REPAIR KIT

KIT, REPAIR, Incl. (3) springs, (1) ball, (1) poppet, and (1) plug which are not serviced separately and D150810 seal kit, not shown, see your 780D Service Manual for location of seals and springs

1шт.

D150810

SEAL

KIT - seal, includes (9) O-rings and (2) backup rings which are not serviced separately, not shown

1шт.

G110077

KIT

- service for G110467 circuit relief valve, includes G110078 circuit relief valve assembly (Ref. 1 - 13) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
