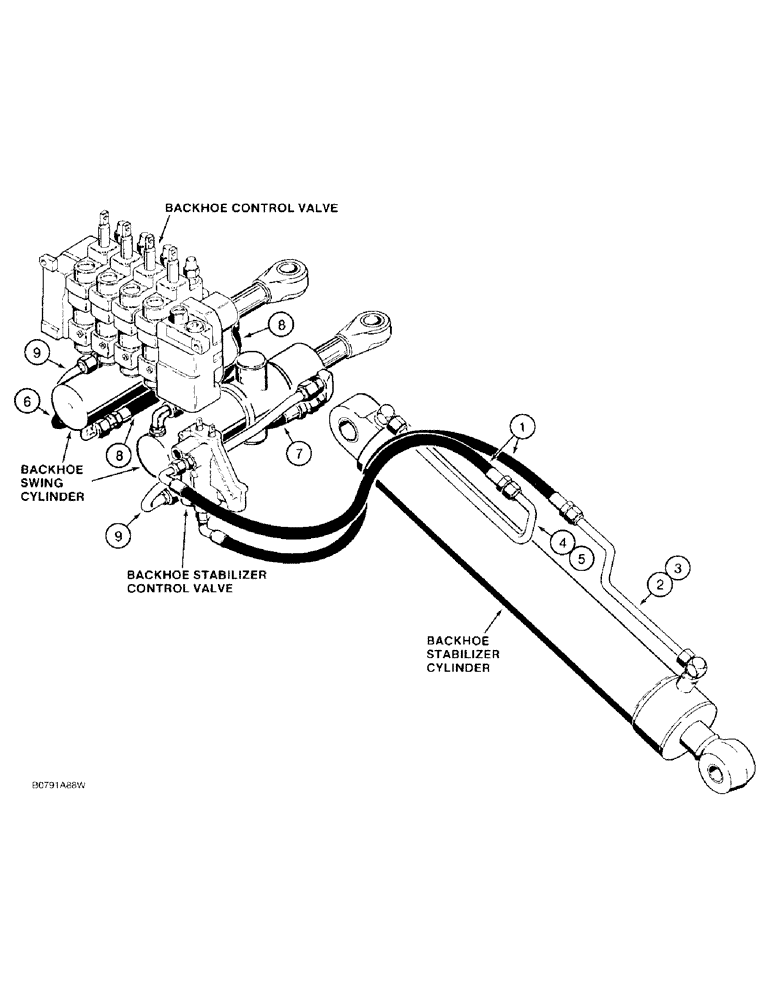

Запчасти Case 780D (1-20) - PICTORIAL INDEX, BACKHOE HYDRAULICS, STABILIZER AND SWING CYLINDERS (00) - PICTORIAL INDEX

1

Hose from stabilizer control valve to stabilizer cylinder closed and rod end ports, Page 8-27

1шт.

2

Tube at right-hand stabilizer cylinder rod end port, Page 8-27

1шт.

3

Tube at left-hand stabilizer cylinder rod end port, Page 8-27

1шт.

4

Tube at right-hand stabilizer cylinder closed end port, Page 8-27

1шт.

5

Tube at left-hand stabilizer cylinder closed end port, Page 8-27

1шт.

6

Hose from backhoe control valve swing spool upper port to rod end of left-hand swing cylinder, Page 8-29

1шт.

7

Hose from backhoe control valve swing spool lower port to rod end of right-hand swing cylinder, Page 8-29

1шт.

8

Swing cylinder crossover hoses, Page 8-29

1шт.

9

Tube at swing cylinders, Page 8-29

1шт.
