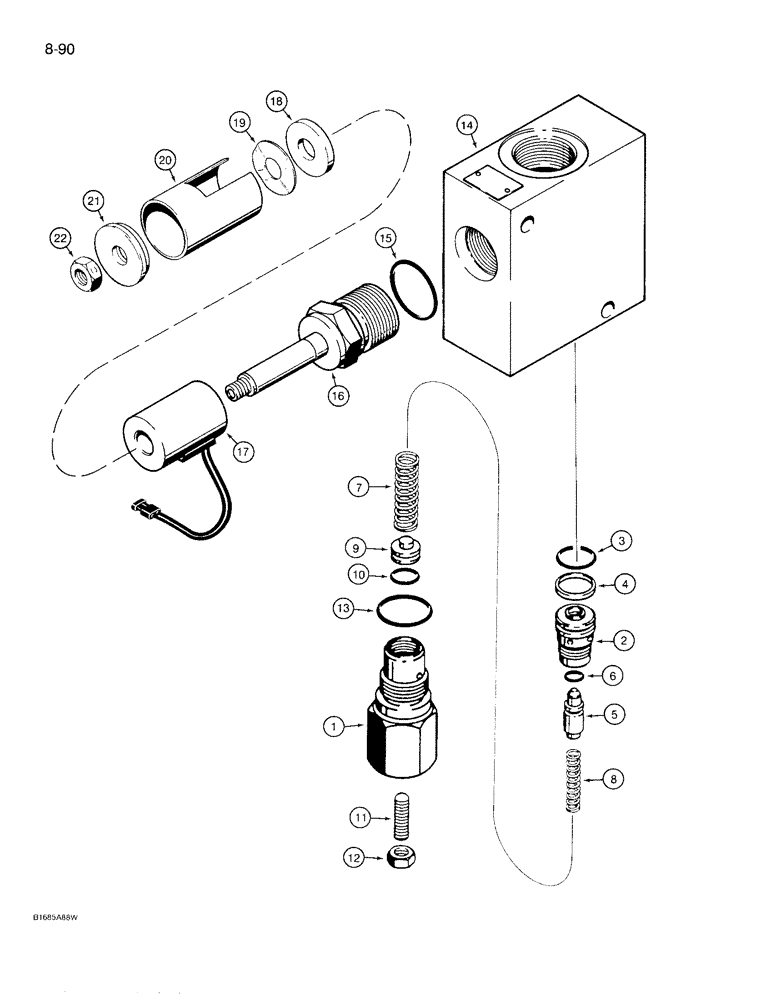

Запчасти Case 780D (8-090) - BOOM LOCK SOLENOID VALVE, CHASSIS MOUNTED (08) - HYDRAULICS

D139523

HYDRAULIC VALVE

VALVE ASSEMBLY - solenoid, backhoe boom lock, no longer available, order D144935 valve, Includes: Ref. 1 - 22

1шт.

D144935

VALVE

ASSEMBLY - solenoid, backhoe boom lock, component parts list not available at time of printing, Includes: Ref. 1 - 22

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - circuit, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1 - 13

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

15

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

- solenoid body

1шт.

16

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

N14634

COIL

ASSEMBLY - solenoid, component parts not serviced separately, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - coil

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - coil

1шт.

21

NSS

NOT SOLD SEPARAT

CAP - coil end

1шт.

22

131-813

NUT,3/8"-24

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

G110077

KIT

- service for G110467 circuit relief valve, includes G110078 circuit relief valve assembly (Ref. 1 - 13) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
