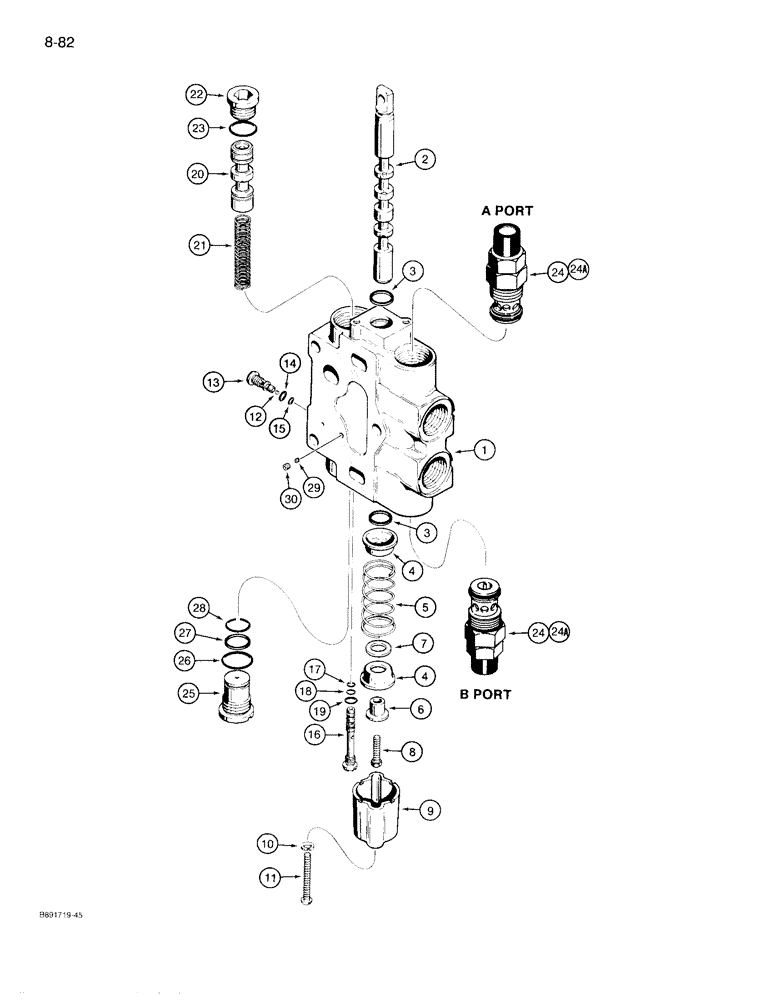

Запчасти Case 780D (8-082) - D142522 BACKHOE CONTROL VALVE, SWING SECTION (08) - HYDRAULICS

D142522

VALVE

SECTION ASSEMBLY - swing, identification No. 255, D141069 or D141070 valve, Includes: Ref. 1 - 31

1шт.

D145848

VALVE

SECTION ASSEMBLY - swing, identification No. 265, includes A48938 dust cover kit, Ref. 31, D144973 or D144974 valve, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

G46908

O-RING

- spool

2шт.

4

R30191

WASHER

SEAT - spring

2шт.

5

R30192

SPRING

- centering

1шт.

6

N14419

SPACER

- retainer

1шт.

7

N14480

SPACER

WASHER - spacer, special

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

D78454

HOUSING

- spool cover

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

2шт.

12

211-255

BALL,3/16 Dia

grade 50, chrome alloy steel 3/16 Dia

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 13 - 15

1шт.

13

A47204

PLUG

SEAT - shuttle, secondary

1шт.

14

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

15

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

-008, 90 Duro, .176" ID x .070" Thk, small

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary, includes a seat and ball not serviced separately, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle, primary

1шт.

17

A47223

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

- small

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, medium

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

N7500

SPOOL

- load check

1шт.

21

N7501

SPRING

- spool

1шт.

22

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 23 Hex Soc, 1 1/16"-12 ORB

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

24

D128695

VALVE

ASSEMBLY - anticavitation and relief, D142522 section, parts list Figure 8-88

2шт.

Pressure setting not preset for this application. Please refer to your 780D Service Manual for the corect pressure settings.

1шт.

24a

D142527

VALVE, PRESSURE RELI

VALVE ASSEMBLY - anticavitation and relief, D145848 section, parts list Figure 8-88

1шт.

Pressure setting not preset for this application. Please refer to your 780D Service Manual for the corect pressure settings.

1шт.

N7504

PLUG

ASSEMBLY - control valve body, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - control valve body

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

N7509

RING

- backup, O-ring

1шт.

28

A55911

O-RING,0.807" ID

- small

1шт.

29

A47213

PLUG

- inside

1шт.

30

A47105

PLUG

- outside

1шт.

31

A48938

KIT

- dust cover, rubber boot to seal valve spool, D145848 swing section, not shown, component parts not serviced separately

1шт.
