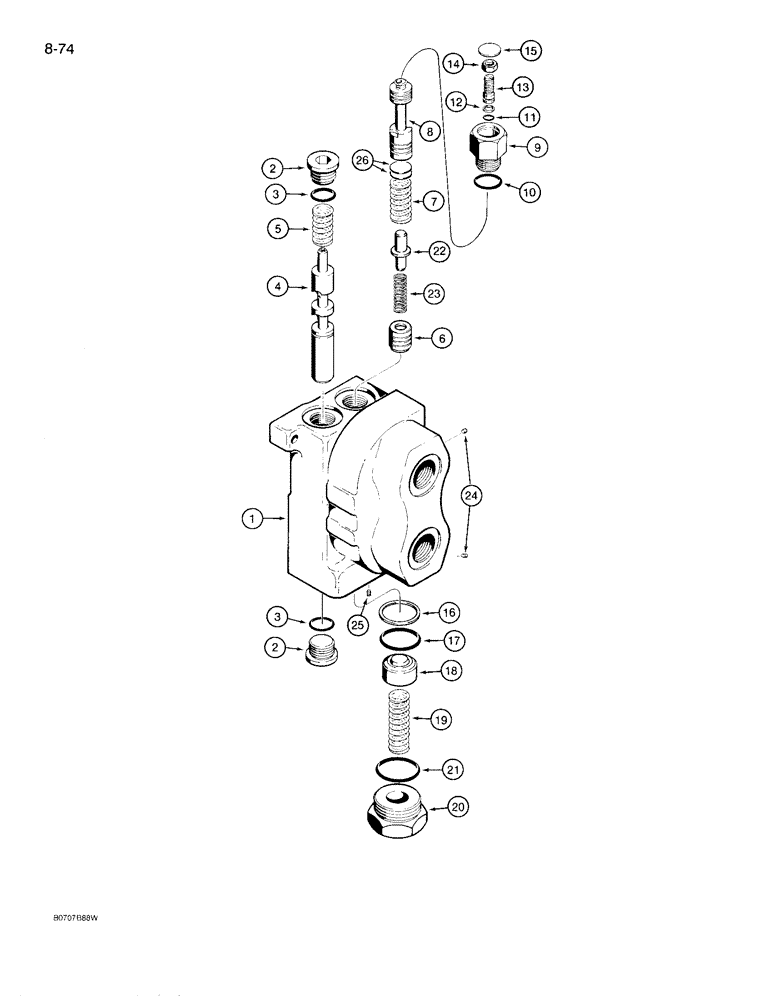

Запчасти Case 780D (8-074) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTION (08) - HYDRAULICS

D142523

KNIFE SECTION

SECTION ASSEMBLY - inlet and outlet, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

5

D78464

SPRING

- spool

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

D78458

SPRING

- unloading spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - unloading

1шт.

D87077

PLUG

ASSEMBLY - valve section, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- small

1шт.

12

D87094

BACK-UP RING

- backup, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

15

D87075

COVER

CAP - dust

1шт.

16

D87079

RING

- backup, O-ring

1шт.

17

A62193

O-RING,1.424" ID x 1.63" OD

- piston

1шт.

18

D78461

PISTON ASSY.

PISTON - valve section

1шт.

19

N7498

SPRING

- valve section

1шт.

20

D78462

PLUG

- hex head, special, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

N14022

SPACER

POPPET - unloading valve

1шт.

23

N14023

SPRING

- unloading valve, small

1шт.

24

D78456

PLUG

RESTRICTOR - valve section body

2шт.

25

D78455

PLUG

- hex socket, special

1шт.

26

D145255

SHIM

- spool

2шт.
