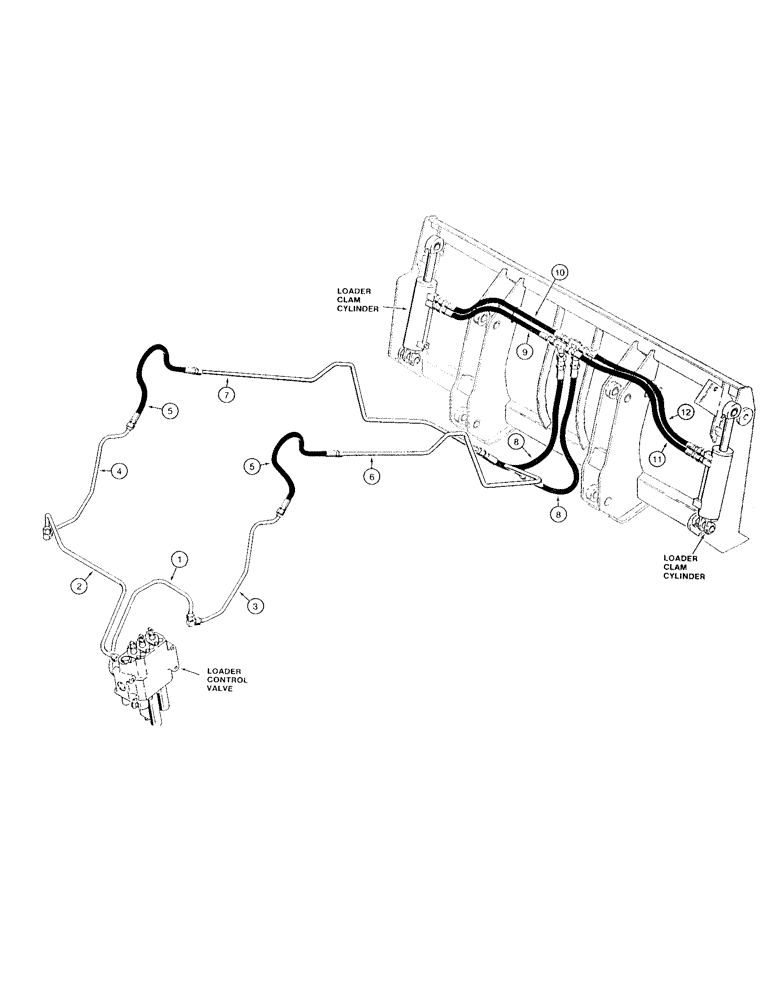

Запчасти Case 780D (1-18) - PICTORIAL INDEX, LOADER HYDRAULICS, CLAM CYLINDERS (00) - PICTORIAL INDEX

1

Tube at loader control valve clam spool lower port, Page 8-23

1шт.

2

Tube at loader control valve clam spool upper port, Page 8-23

1шт.

3

Tube to hose, right-hand, Page 8-23

1шт.

4

Tube to hose, left-hand, Page 8-23

1шт.

5

Hose to tubes on lift frame, Page 8-23

1шт.

6

Right-hand tube on lift frame to clam bucket, Page 8-23

1шт.

7

Left-hand tube on lift frame to clam bucket, Page 8-23

1шт.

8

Hoses from lift frame tubes to tee on clam bucket, Page 8-23

1шт.

9

Lower left-hand hose at clam bucket tee, Page 8-25

1шт.

10

Upper left-hand hose at clam bucket tee, Page 8-25

1шт.

11

Lower right-hand hose at clam bucket tee, Page 8-25

1шт.

12

Upper right-hand hose at clam bucket tee, Page 8-25

1шт.
