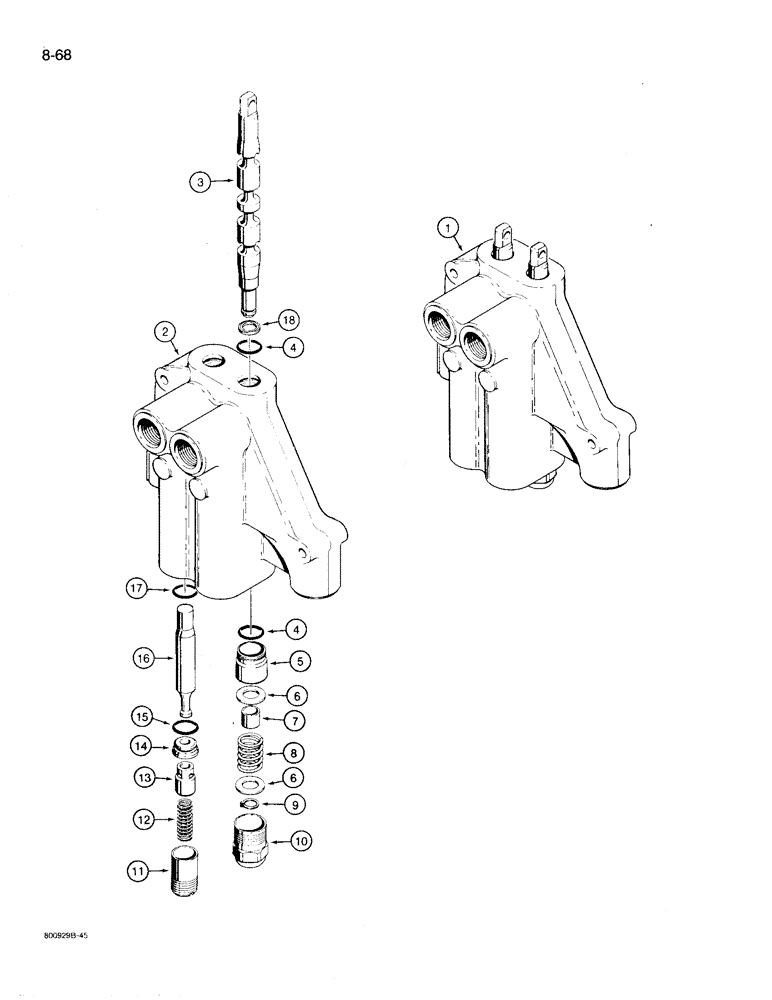

Запчасти Case 780D (8-068) - STABILIZER CONTROL VALVE (08) - HYDRAULICS

1

DR124856

VALVE

ASSEMBLY - stabilizer control, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

DC124856

CORE-VALVE HYD

RETURN NUMBER - use this part number to return the valve core for credit when using a remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

D124856

VALVE

ASSEMBLY - stabilizer control, new, Cessna No. 39042-AAQ, includes Ref. 2 - 18, Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

2шт.

4

N8453

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

4шт.

5

N8450

BUSHING

- spool

2шт.

6

N6470

WASHER

- spring retainer

4шт.

7

N8436

WASHER

SPACER - spring

2шт.

8

D56445

SPRING

- spool return

2шт.

9

A27020

RING

SNAP RING - spool

2шт.

10

F35196

CAP

- spool end

2шт.

11

D59653

PLUG

- spring retainer

2шт.

12

D56444

SPRING

- poppet

2шт.

13

D59654

VALVE

POPPET - control valve

2шт.

N8451

SEAT

ASSEMBLY - plunger, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

16

N8452

PLUNGER

- control valve

2шт.

17

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plunger

2шт.

18

N8005

WIPER SEAL

WIPER - spool, outer

2шт.
