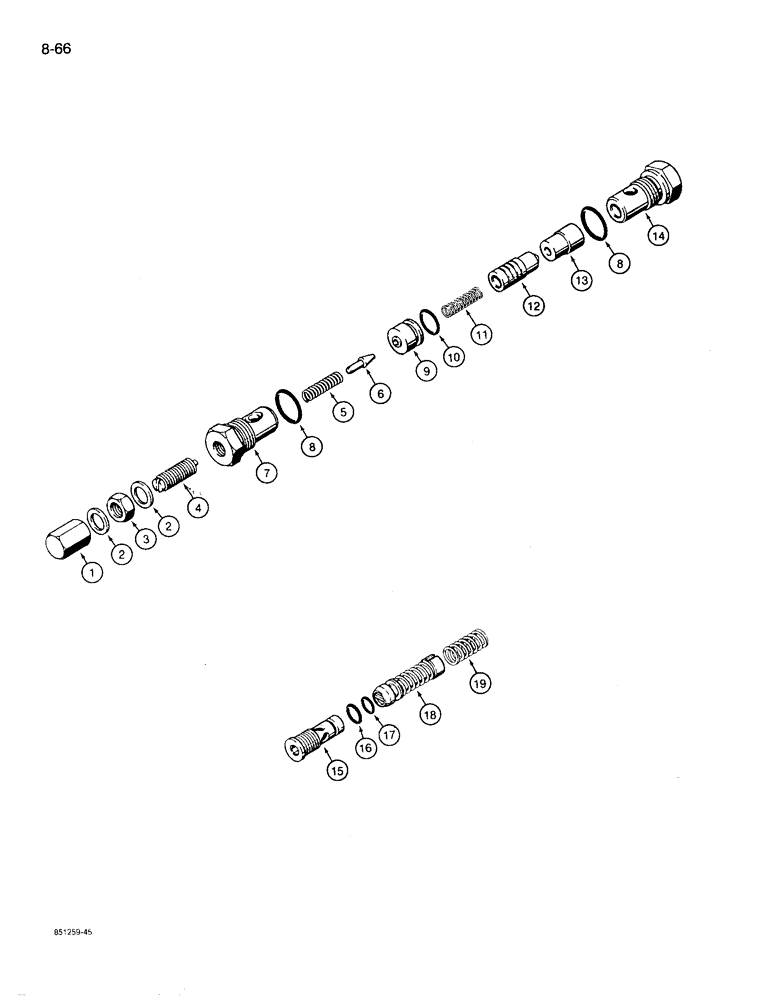

Запчасти Case 780D (8-066) - LOADER CONTROL VALVE, RELIEF VALVES, MAIN RELIEF VALVE (08) - HYDRAULICS

1

L32299

NUT

- hex, special

1шт.

2

D26763

WASHER

- special

2шт.

3

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 18 NF

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- adjusting, main relief valve

1шт.

5

D24763

SPRING

- plunger

1шт.

6

D24762

VALVE

PLUNGER - main relief

1шт.

7

D82718

BODY

CAP - valve

1шт.

8

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- cap and plug

2шт.

9

D82716

VALVE

SEAT - plunger

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat

1шт.

11

D82724

SPRING

- poppet

1шт.

12

D72745

VALVE

POPPET - main relief

1шт.

13

D82715

VALVE

SEAT - poppet

1шт.

14

D82719

PLUG

- main relief valve

1шт.

N6716

VALVE

ASSEMBLY - circuit relief, Includes: Ref. 15 - 19

2-4шт.

15

N6717

PLUG

- circuit relief valve

1шт.

16

D24754

GASKET

- outer, circuit relief valve

1шт.

17

N7330

O-RING

- inner, circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - circuit relief valve, component parts not serviced separately

1шт.

19

N6594

VALVE SPRING

SPRING, VALVE - inner, circuit relief valve

1шт.
