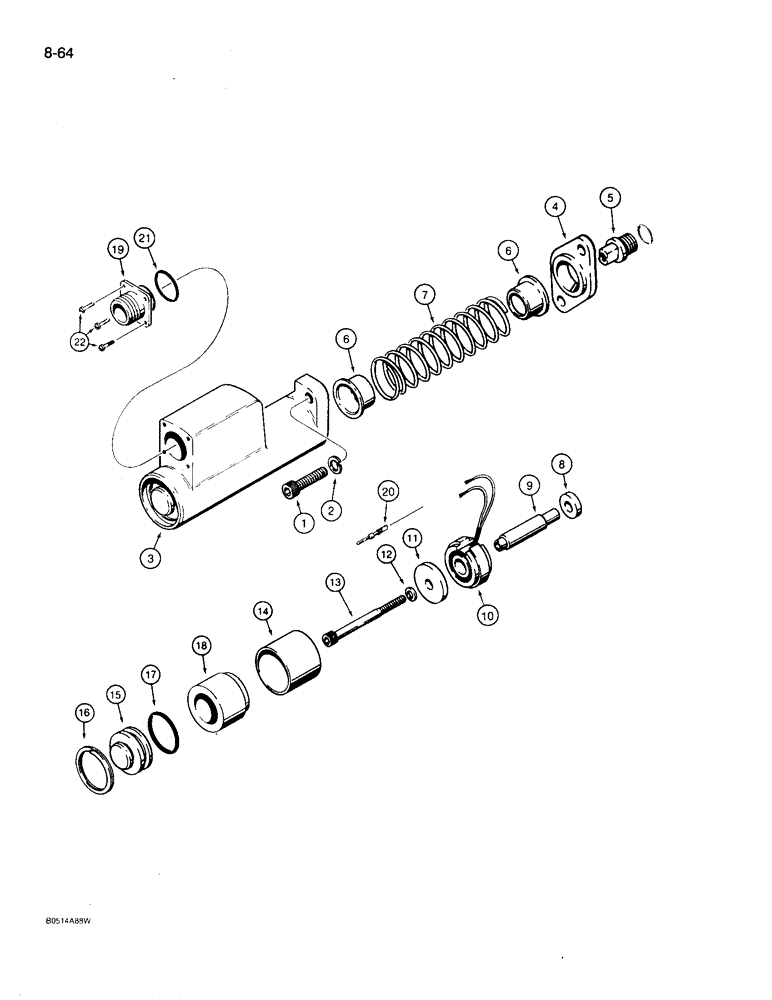

Запчасти Case 780D (8-064) - LOADER CONTROL VALVE, BUCKET SPOOL MAGNETIC DETENT (08) - HYDRAULICS

N14619

DETENT

ASSEMBLY - magnetic, bucket spool, Includes: Ref. 1 - 22

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

N9063

COVER ASSY

COVER - magnetic detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

- spool end, for O-ring number, see spool parts list on Figure 8-60

1шт.

6

D24777

COLLAR

SEAT - spring

2шт.

7

D24776

VALVE SPRING

SPRING - centering, spool

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D80688

SOLENOID

COIL - magnetic detent

1шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80686

SPACER

- small

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4" - 20 NC x 3"

1шт.

14

D82711

SPACER

- sleeve

1шт.

15

D80683

PLUG

- end

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - retaining, cover

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- plug

1шт.

18

N6601

SPACER

- magnetic detent

1шт.

19

N7172

CONNECTOR, ELEC

RECEPTACLE - magnetic detent

1шт.

20

N7173

TERMINAL STRIP

TERMINAL - electrical connector

2шт.

21

S16824

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- receptacle

1шт.

22

187-1709

SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"

SCREW - pan head, self-tapping, No. 4 - 40 NC x 3/8"

4шт.
