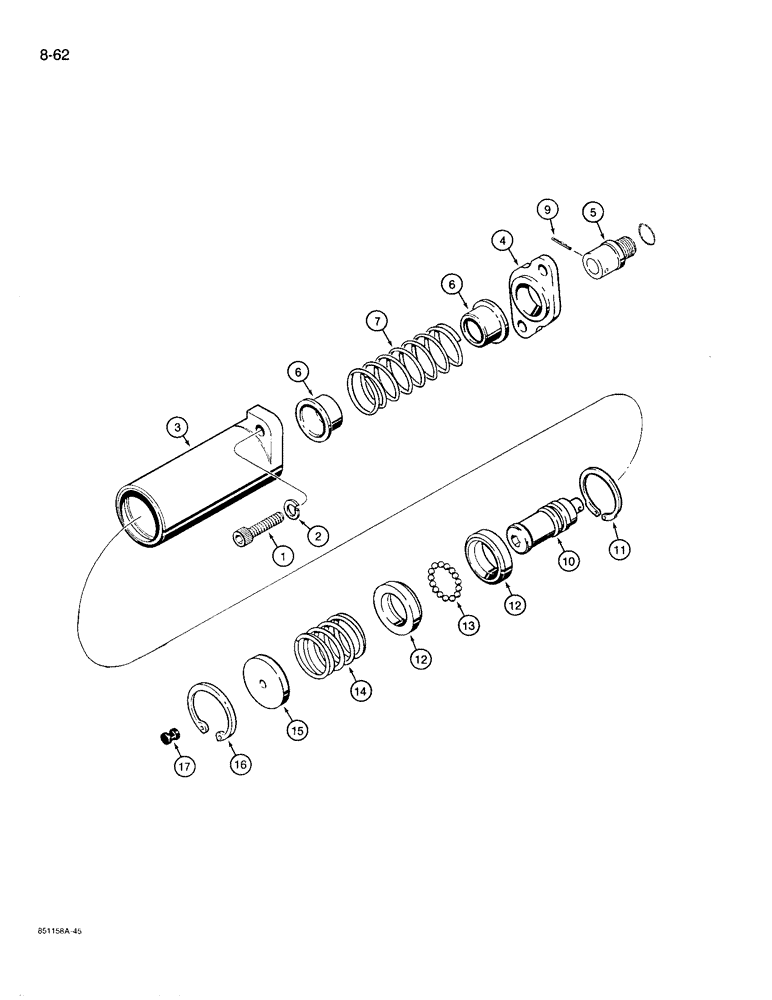

Запчасти Case 780D (8-062) - LOADER CONTROL VALVE, LIFT SPOOL DETENT (08) - HYDRAULICS

N8211

DETENT

ASSEMBLY - loader lift spool, Includes: Ref. 1 - 17

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

N8213

PLUG

- spool end, for O-ring number, see spool parts list on Figure 8-60

1шт.

6

D24777

COLLAR

SEAT - spring

2шт.

7

N6610

VALVE SPRING

SPRING - centering, spool

1шт.

9

138-72

LOCK PIN,5/32" x 11/16", Slotted

Pin, 5/32" x 11/16", Slotted

1шт.

10

N8214

CAP

SLEEVE - detent

1шт.

11

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, detent sleeve

1шт.

12

N6605

RETAINER

- ball

2шт.

13

211-204

BALL

- 3/16", grade 25, chrome alloy steel

15шт.

14

N6669

VALVE SPRING

SPRING - detent

1шт.

15

N6608

PLUG

- detent housing

1шт.

16

H746388

SNAP RING,1.438", Int, #143

Ring, Snap, , detent cover 1.438", Int, #143

1шт.

17

L31734

PLUG

- vent

1шт.
