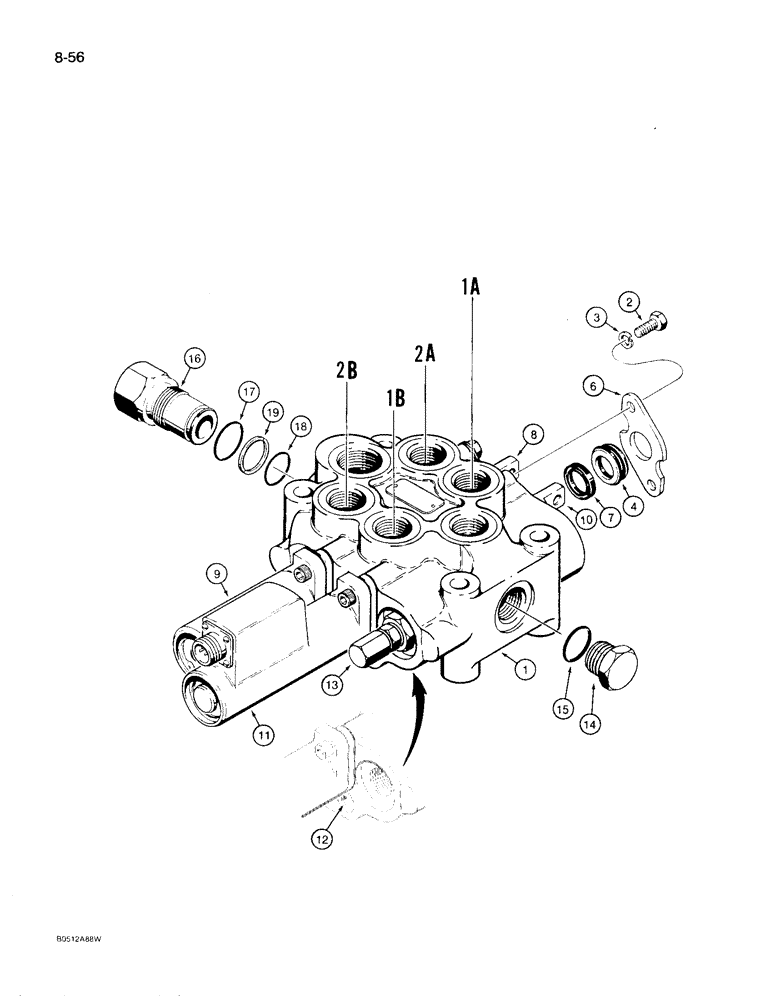

Запчасти Case 780D (8-056) - LOADER CONTROL VALVE - TWO SPOOL (08) - HYDRAULICS

D138274

VALVE

ASSEMBLY - loader control, two spool, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

6

N8212

PLATE ASSY.

PLATE - retaining

2шт.

7

D82727

SEAL

- spool

4шт.

8

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - lift, parts list Figure 8-60

1шт.

9

N8211

DETENT

ASSEMBLY - lift, parts list Figure 8-62

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - bucket, parts list Figure 8-60

1шт.

11

N14619

DETENT

ASSEMBLY - magnetic, bucket, parts list Figure 8-64

1шт.

12

N6716

VALVE

ASSEMBLY - circuit relief, parts list Figure 8-66

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - main relief, parts list Figure 8-66

1шт.

14

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex head, 1-1/16"-12 NF, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

16

N6583

FITTING

- special

1шт.

17

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- outer

1шт.

18

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- inner

1шт.

19

L32991

RING

- backup, inner O-ring

1шт.
