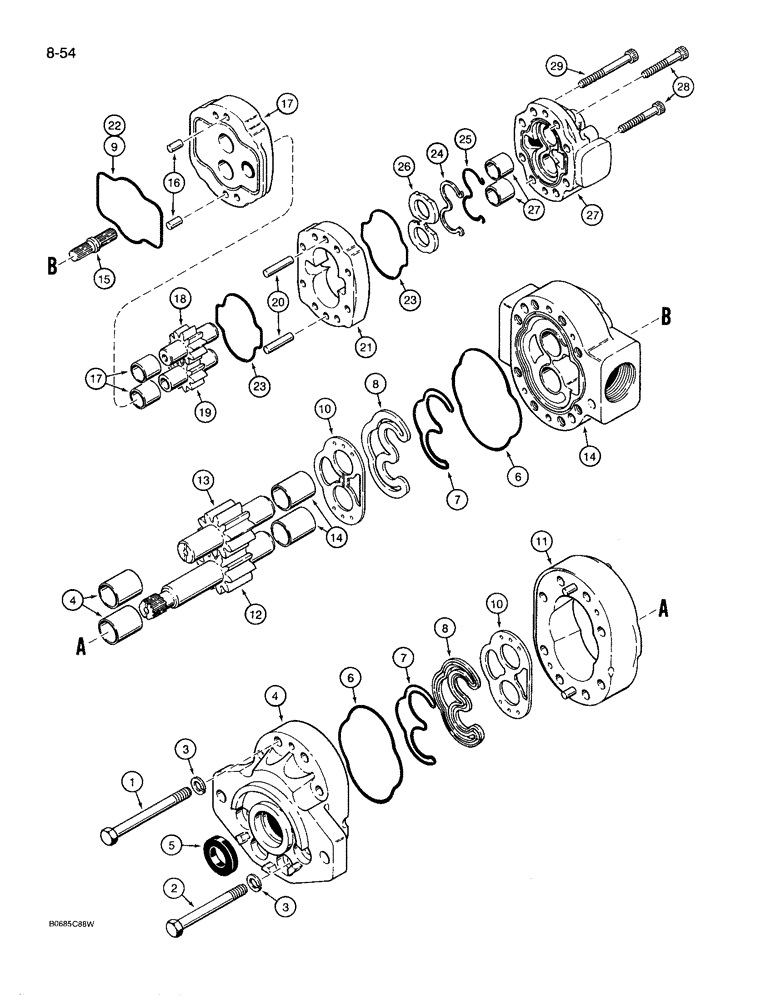

Запчасти Case 780D (8-054) - D138438 EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D138438

PUMP

ASSEMBLY - equipment hydraulic, rear mounted, Includes: Ref. 1 - 29

1шт.

D144079

PUMP

ASSEMBLY - front gear section, Includes: Ref. 1 - 14

1шт.

1

26-768

BOLT - hex head, 7/16" - 14 NC x 4-1/4", grade 8

4шт.

2

26-760

BOLT - hex head, 7/16" - 14 NC x 3-3/4", grade 8

4шт.

3

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

4

D142479

COVER

- shaft end, 17 gpm, bushings not serviced separately

1шт.

D144060

SEAL

KIT - seal, front gear pump section, Includes: Ref. 5 - 9

1шт.

5

N60306

SEAL

SEAL - shaft

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cover and body

2шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

7

N60243

SEAL

- formed, special

2шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

8

N60305

RETAINER

- seal

2шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - coupling shaft housing to bushing carrier

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

10

D143154

LARGE PLATE

PLATE - wear

2шт.

11

D142495

VALVE BLOCK

HOUSING - gear, with dowel pins

1шт.

12

D143159

GEAR

- drive, splined end, 17 gpm

1шт.

13

D142494

GEAR

- driven, 17 gpm

1шт.

14

D142486

SPOOL

CARRIER - bushing, port section, 17 gpm, bushings not serviced separately

1шт.

D144062

PUMP

ASSEMBLY - rear gear section, Includes: Ref. 15 - 29

1шт.

15

D142476

COUPLING

SHAFT - coupling

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - dowel, coupling shaft housing

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - coupling shaft, 4 gpm, bushings not serviced separately

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - driven, 4 gpm

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - drive, 4 gpm

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - dowel, 4 gpm gear housing

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - gear, 4 gpm

1шт.

D144059

SEAL

KIT - seal, rear gear pump section, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - coupling shaft housing to bushing carrier

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

23

S5741

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

- 4 gpm gear housing

2шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - end cover

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - end, 4 gpm, bushings not serviced separately

1шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex socket head, 8 mm - 1.25 x 50 mm

2шт.

29

NSS

NOT SOLD SEPARAT

BOLT - hex socket head, 8 mm - 1.25 x 70 mm

6шт.

D145081

SEAL

KIT - seal, for complete pump

1шт.

Rubber boots showing at base of spool eyes in illustration are part nbr A47188.

1шт.
