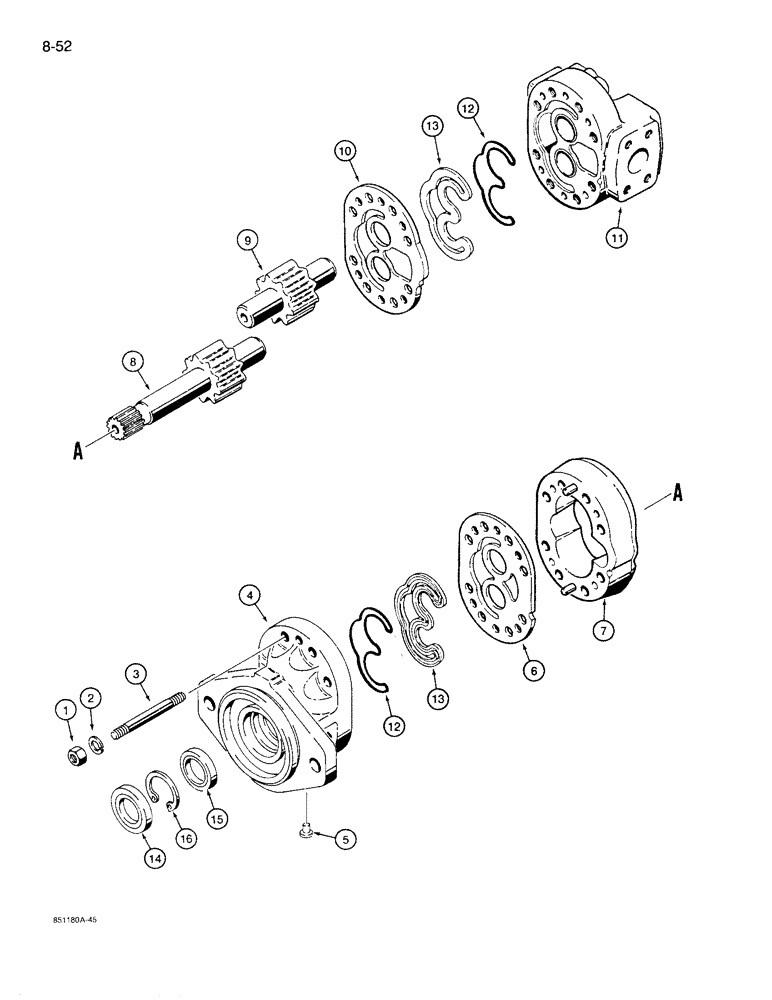

Запчасти Case 780D (8-052) - D127917 STEERING AND BACKHOE HYDRAULIC PUMP (08) - HYDRAULICS

D127917

PUMP

ASSEMBLY - steering and backhoe hydraulic, front mounted, Includes: Ref. 1 - 16

1шт.

1

129-104

NUT,7/16"-14, G5

8шт.

2

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

N9272

STUD

- cover

8шт.

4

N9824

COVER ASSY

COVER - mounting

1шт.

5

N60210

PLUG

- end cover

1шт.

6

N60292

PLATE

- wear, end cover

1шт.

7

N9029

HOUSING

- gear, center

1шт.

8

N9823

GEAR WHEEL

GEAR - drive, hydraulic circuit

1шт.

9

N60295

GEAR WHEEL

GEAR - driven, hydraulic circuit

1шт.

10

N60296

PLATE

- wear, port end cover

1шт.

11

N9822

COVER ASSY

COVER - port end

1шт.

N7126

SEAL KIT

- seal, Includes: Ref. 12 - 16

1шт.

12

N60243

SEAL

- special

2шт.

13

N60305

RETAINER

- seal

2шт.

14

N9020

SEAL

SEAL - shaft, outer, if used

1шт.

15

N60306

SEAL

SEAL - shaft, inner

1шт.

16

A49490

CIRCLIP

RING - snap, seal retaining

1шт.
