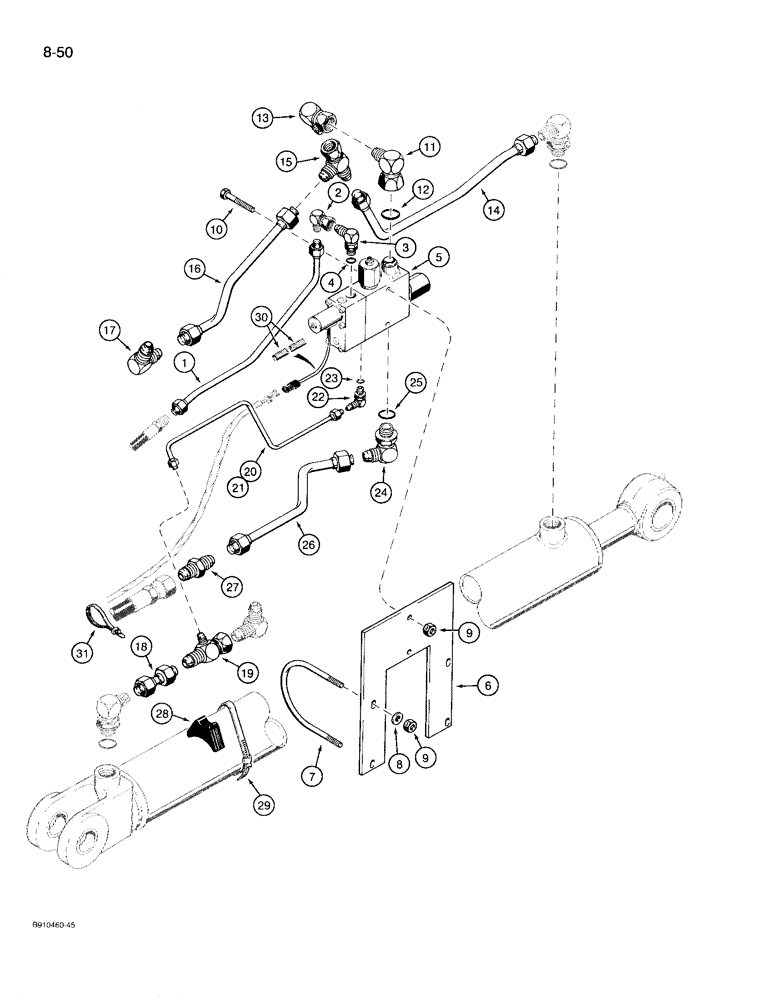

Запчасти Case 780D (8-050) - BACKHOE BOOM LOCK HYD & ELEC. CIRCUIT, AT R.H. BOOM CYLINDER, CYLINDER MOUNTED BOOM LOCK VALVE (08) - HYDRAULICS

1

D150063

TUBE ASSY.

TUBE - drain, attaches to item 7 drain hose on Figure 8-48

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

D150443

VALVE

ASSEMBLY - boom lock, parts list Figure 8-92, solenoid wire connector attaches to Ref. 18 boom lock harness on Figure 8-48

1шт.

6

D149660

PLATE

- valve mounting

1шт.

7

D149666

U-BOLT

- 3/8 inch

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

6шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

11

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch swivel flare, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

14

D150061

TUBE ASSY.

TUBE - lock valve to right-hand boom cylinder rod end, see Figure 8-32, Ref. 22 for elbow

1шт.

15

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj straight thread 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

16

D149647

TUBE ASSY.

TUBE - lock valve to left-hand cylinder

1шт.

17

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

- 90 degree, 1-1/16-12 inch flare, attaches to boom cylinder crossover hose, see Figure 8-32, Ref. 30 for hose

1шт.

18

D149651

TUBE ASSY.

TUBE - at elbow on boom cylinder closed end to pilot tee

1шт.

19

D150349

TEE

- special, right-hand boom cylinder closed end

1шт.

20

D150065

TUBE ASSY.

TUBE - tee to pilot port on boom lock valve, Start Serial: JJG0071751

1шт.

21

D150382

TUBE ASSY.

TUBE - tee to pilot port on boom lock valve, Serial Range: -JJG0071751

1шт.

22

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj. O-ring, Includes: Ref. 23

1шт.

24

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj. O-ring, Includes: Ref. 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

26

D149653

TUBE ASSY.

TUBE - attaches to hose at lower boom port of backhoe valve, see Figure 8-32, Ref. 11 for hose

1шт.

27

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

28

R24703

SUPPORT

SPACER - tube clamp

1шт.

29

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube

1шт.

30

D121385

PLASTIC-RUBBER TUBE

GUARD - harness protection

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
