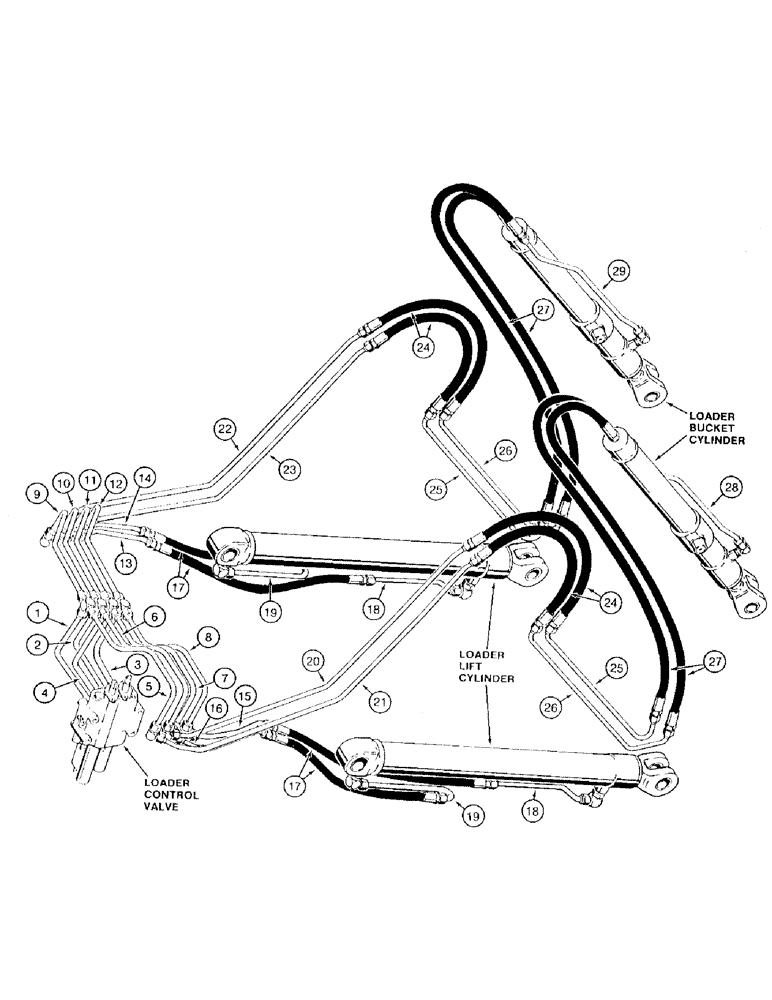

Запчасти Case 780D (1-16) - PICTORIAL INDEX, LOADER HYDRAULICS, LIFT AND BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Tube at loader control valve bucket spool lower port to tee, Page 8-19, 8-21

1шт.

2

Tube at loader control valve bucket spool upper port to tee, Page 8-19, 8-21

1шт.

3

Tube at loader control valve lift spool upper port to tee, Page 8-15, 8-17

1шт.

4

Tube at loader control valve lift spool lower port to tee, Page 8-15, 8-17

1шт.

5

Tube, rear, at tee to right-hand bucket cylinder closed end port Page 8-19, 8-21

1шт.

6

Tube, center rear, at tee to right-hand bucket cylinder rod end port, Page 8-19, 8-21

1шт.

7

Tube, center front, at tee to right-hand lift cylinder closed end port, Page 8-15, 8-17

1шт.

8

Tube, front, at tee to right-hand lift cylinder rod end port, Page 8-15, 8-17

1шт.

9

Tube, rear, at tee to left-hand bucket cylinder closed end port, Page 8-19, 8-21

1шт.

10

Tube, center rear, at tee to left-hand bucket cylinder rod end port, Page 8-19, 8-21

1шт.

11

Tube, center front, at tee to left-hand lift cylinder closed end port, Page 8-15, 8-17

1шт.

12

Tube, front, at tee to left-hand lift cylinder rod end port, Page 8-15, 8-17

1шт.

13

Tube at hose to rod end of left-hand lift cylinder, Page 8-15

1шт.

14

Tube at hose to closed end of left-hand lift cylinder, Page 8-15

1шт.

15

Tube at hose to rod end of right-hand lift cylinder, Page 8-15

1шт.

16

Tube at hose to closed end of right-hand lift cylinder, Page 8-15

1шт.

17

Hoses at lift cylinder tubes, Page 8-15

1шт.

18

Lift cylinder rod end tubes, Page 8-15

1шт.

19

Lift cylinder closed end tubes, Page 8-15

1шт.

20

Tube at hose to rod end of right-hand bucket cylinder, Page 8-19

1шт.

21

Tube at hose to closed end of right-hand bucket cylinder, Page 8-19

1шт.

22

Tube at hose to closed end of left-hand bucket cylinder, Page 8-19

1шт.

23

Tube at hose to rod end of left-hand bucket cylinder, Page 8-19

1шт.

24

Tube connecting hoses, Page 8-19

1шт.

25

Hose connecting tubes, Page 8-19

1шт.

26

Hose connecting tubes, Page 8-19

1шт.

27

Hoses at loader bucket cylinders, Page 8-19

1шт.

28

Right-hand loader bucket cylinder rod end tube, Page 8-21

1шт.

29

Left-hand loader bucket cylinder rod end tube, Page 8-21

1шт.
