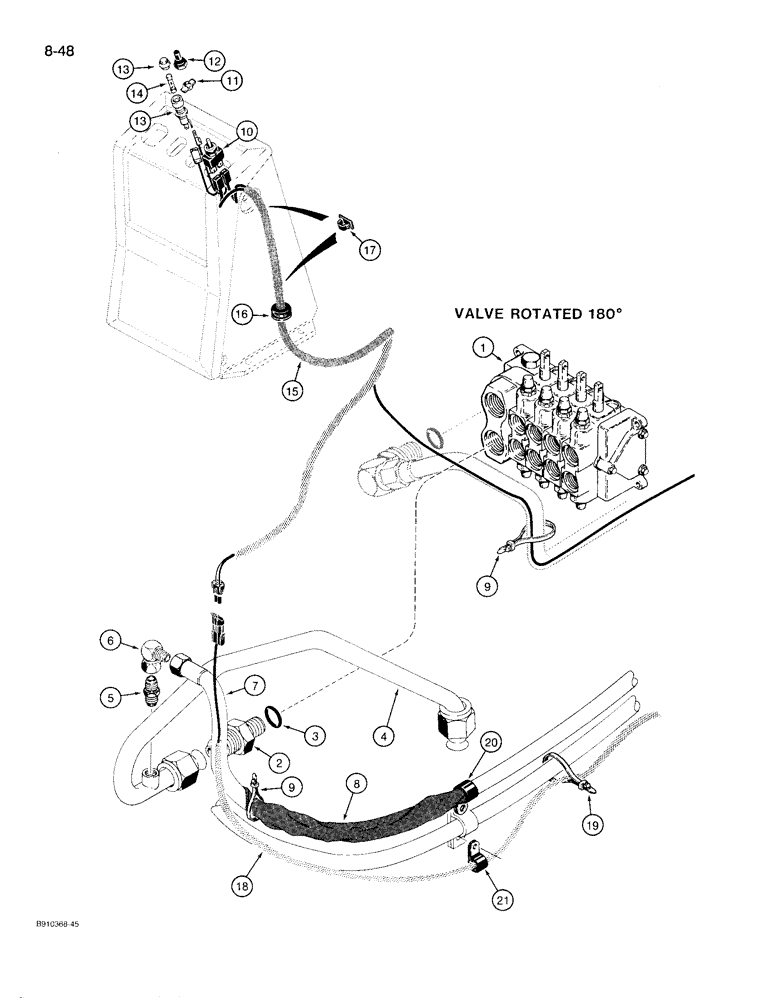

Запчасти Case 780D (8-048) - BACKHOE BOOM LOCK HYD. & ELEC. CIRCUIT, AT CONTROL TWR & BACKHOE VALVE, CYLINDER MOUNTED BOOM LOCK (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see parts list Figure 8-70 or 8-72 for valve and mounting hardware

1шт.

2

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, backhoe valve return port, lower, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

4

D141332

TUBE

- backhoe control valve return, used on models without extendable dipper

1шт.

4

D141330

TUBE ASSY.

TUBE - backhoe control valve return, used on models with extendable dipper

1шт.

5

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

7

D149894

HOSE ASSY.

HOSE - 1500 mm long, drain, attaches to Ref. 1 on Figure 8-50

1шт.

8

D134729

SLEEVE

- hose protection

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

10

D67251

SWITCH

- toggle, boom lock

1шт.

11

L105735

PLATE ASSY.

PLATE - trim

1шт.

12

L101998

BOOT

- toggle switch

1шт.

13

A22874

HOLDER

RETAINER - fuse, at backhoe control tower

1шт.

14

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere, boom lock

1шт.

15

D139531

HARNESS

- boom lock, at control tower

1шт.

16

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness

1шт.

17

L100659

CLIP

- harness

2шт.

18

D149681

HARNESS

- boom lock, boom lock valve solenoid to control tower boom lock harness

1шт.

19

D147773

CLAMP

STRAP - tie, Serial Range: harness-hose

5шт.

20

T50103

CLAMP

- P-type

1шт.

21

49836

CLAMP

- P-type

1шт.
