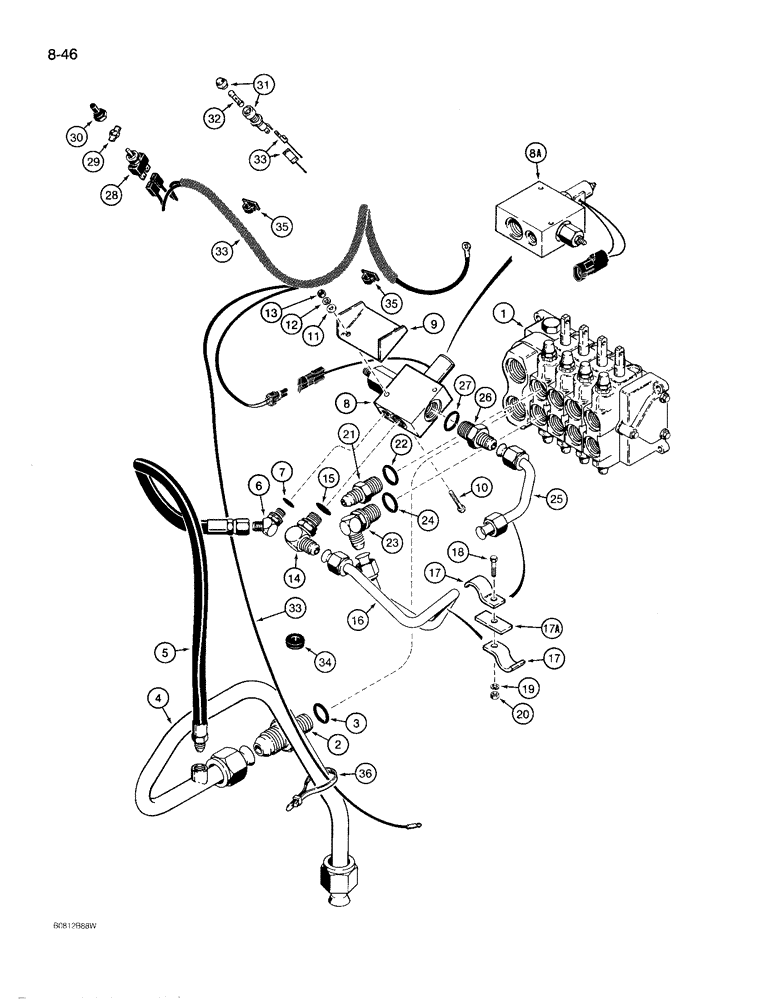

Запчасти Case 780D (8-046) - BACKHOE BOOM LOCK HYDRAULIC & ELEC. CIRCUIT, CHASSIS MOUNTED BOOM LOCK VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see parts list Figure 8-70 or 8-72 for valve and mounting hardware

1шт.

2

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, backhoe valve return port, lower, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

4

D141332

TUBE

- backhoe control valve return, used on models without extendable dipper

1шт.

4

D141330

TUBE ASSY.

TUBE - backhoe control valve return, used on models with extendable dipper

1шт.

5

D143085

HOSE ASSY.

HOSE - 15-3/4" (400 mm) long, Serial Range: valve-return

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Incl. Ref 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

8

D139523

HYDRAULIC VALVE

VALVE ASSEMBLY - boom lock, solenoid, parts list Figure 8-90, no longer available, order D144935 valve

1шт.

8a

D144935

VALVE

ASSEMBLY - boom lock, solenoid, no longer available for service

1шт.

If your machine is equipped with the chassis mounted boom lock setup, above, order P/N D104629 Boom Lock Kit to update your machine. See Fig. 8-48 and 8-50 for service parts.

1шт.

9

D143039

BRACKET - boom lock valve mounting

1шт.

10

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

11

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

16

D143037

TUBE ASSY.

TUBE - boom lock valve to backhoe control valve boom section lower port

1шт.

17

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

2шт.

17a

L73654

SPACER

PLATE - spacer, support

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

23

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

25

D143035

TUBE ASSY.

TUBE - boom, Serial Range: lock-cylinder

1шт.

26

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

28

D67251

SWITCH

- toggle, boom lock

1шт.

29

L105735

PLATE ASSY.

PLATE - trim

1шт.

30

L101998

BOOT

- toggle switch

1шт.

31

A22874

HOLDER

RETAINER - fuse, at backhoe control tower

1шт.

32

223-38

FUSE,3 Amp, Type 3AG

- 3 ampere, boom lock

1шт.

33

D139531

HARNESS

- boom lock

1шт.

34

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness

1шт.

35

L100659

CLIP

- harness

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1-4шт.
