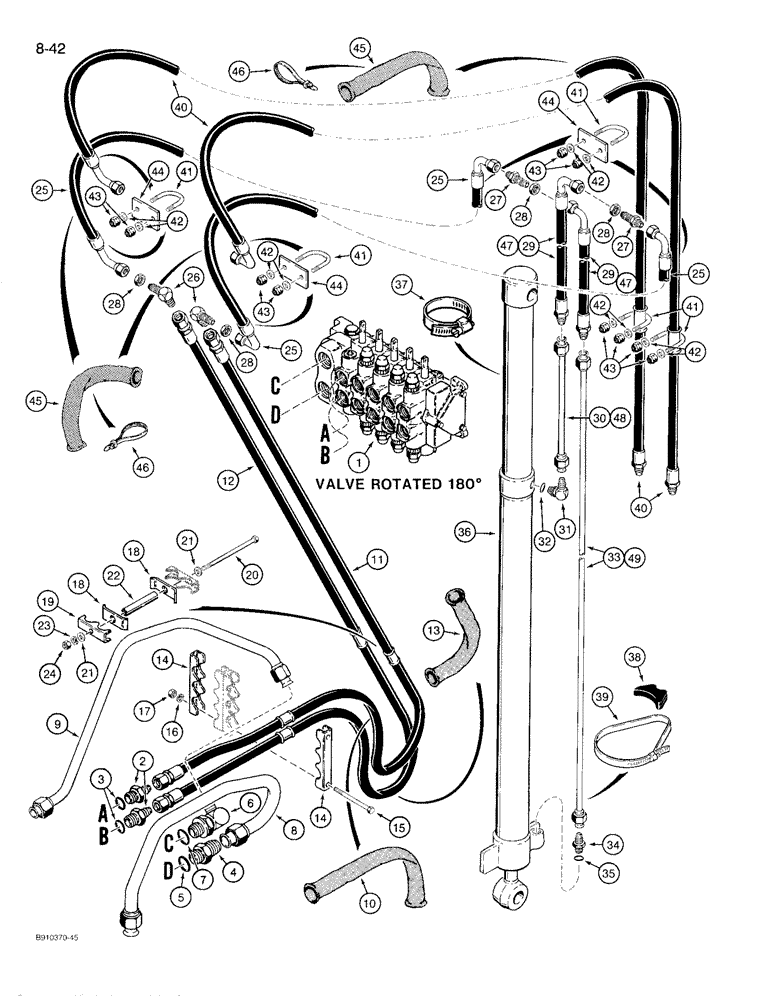

Запчасти Case 780D (8-042) - BACKHOE EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, P.I.N. JJG0071751 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendable dipper models, see parts list Figure 8-72 for valve and mounting hardware

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

6

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, adjustable, backhoe supply tube, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

8

D141330

TUBE ASSY.

TUBE - backhoe return, extendable dipper models

1шт.

9

D145876

TUBE

- backhoe supply, extendable dipper models

1шт.

10

D144243

SLEEVE

- hose

1шт.

11

D144874

HOSE ASSY.

HOSE - 3770 mm long, backhoe control valve extendable dipper upper port to closed end of extendable dipper cylinder

1шт.

12

D144875

HOSE ASSY.

HOSE - 3800 mm long, backhoe control valve extendable dipper lower port to rod end of extendable dipper cylinder

1шт.

13

D144244

SLEEVE

- hose protection

1шт.

14

D140847

CLAMP

- hose, at swing tower

2шт.

15

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

D141293

CLAMP

- hose, Serial Range: mounts-dipper

2шт.

19

D137599

CLAMP

- hose

1шт.

20

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

2шт.

22

D144419

SPACER

- hose clamp

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

25

D144282

HOSE ASSY.

HOSE - 1400 mm long, to extendable dipper cylinder, outer

2шт.

26

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

27

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

2шт.

28

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

4шт.

29

D144286

HOSE ASSY.

HOSE - 315 mm long, to extendable dipper cylinder, inner, used with Ref. 30 and 33 tubes, if used

2шт.

30

L103656

TUBE ASSY.,0.625" OD x 17.8" L

TUBE - 17-51/64 inch long, from hose to extension cylinder, closed end, used with Ref. 29 hose

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

L103658

TUBE ASSY.,0.625" OD x 69.8" L

TUBE - 69-51/64 inch long, from hose to extension cylinder, rod end, used with Ref. 29 hose

1шт.

34

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

36

REF

INSTRUCTION

CYLINDER ASSEMBLY - extension, for correct assembly and components, see Figures 8-118 - 8-122

1шт.

37

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube, if used

1шт.

38

D38648

BLOCK

SPACER - tube clamp

1-2шт.

39

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

1-2шт.

40

D145779

HOSE ASSY.

HOSE - 2910 mm long, to bucket cylinder, extendable dipper models

2шт.

41

D144937

BOLT

U-BOLT - bucket hose

8шт.

42

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

16шт.

43

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

16шт.

44

D144201

PLATE

- spacer

1шт.

45

D144483

SLEEVE

- hose protection

4шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.

47

D149836

HOSE ASSY.

HOSE - 600 mm long, to extendable dipper cylinder, inner, used with Ref. 48 and 49 tubes, if used

2шт.

48

D149854

TUBE ASSY.

TUBE - 5-29/32 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 47 hose

1шт.

49

D149852

TUBE ASSY.

TUBE - 57-23/64 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 47 hose

1шт.
