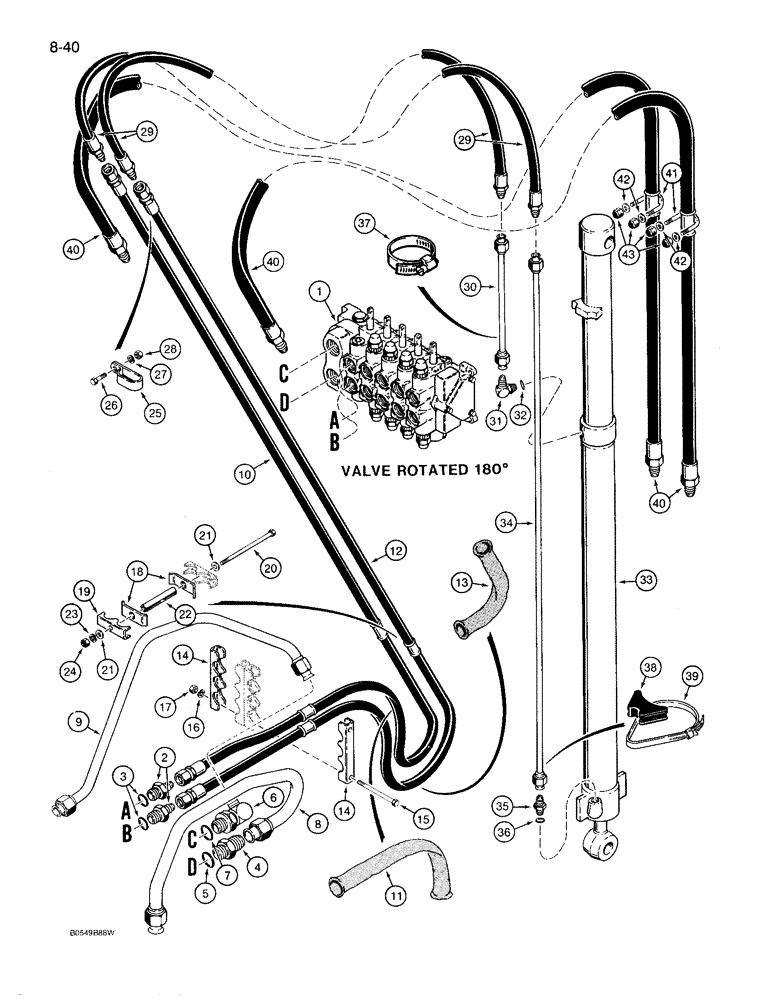

Запчасти Case 780D (8-040) - BACKHOE EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, PRIOR PIN JJG0071751 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendable dipper models, see parts list Figure 8-72 for valve and mounting hardware

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

6

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, adjustable, backhoe supply tube, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

8

D141330

TUBE ASSY.

TUBE - backhoe return, extendable dipper models

1шт.

9

D145876

TUBE

- backhoe supply, extendable dipper models

1шт.

10

D141004

HOSE ASSY.

HOSE - 163 - 3/16" (4145 mm) long, backhoe control valve extendable dipper upper port to closed end of extendable dipper cylinder

1шт.

11

D141398

SLEEVE

- hose protection, upper

1шт.

12

D141007

HOSE ASSY.

HOSE - 160 - 11/16" (4080 mm) long, backhoe control valve extendable dipper lower port to rod end of extendable dipper cylinder

1шт.

13

D141397

SLEEVE

- hose protection, lower

1шт.

14

D140847

CLAMP

- hose, at swing tower

2шт.

15

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

D141293

CLAMP

- hose, Serial Range: mounts-dipper

2шт.

19

D137599

CLAMP

- hose

1шт.

20

113-2420

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex head, 1/2" - 13 NC x 7-1/2", plated

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

2шт.

22

D144419

SPACER

- hose clamp

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hose, at upper dipper end

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

29

D142044

HOSE ASSY.

HOSE - 43 - 5/16" (1100 mm) long, to extendable dipper cylinder

2шт.

30

L103656

TUBE ASSY.,0.625" OD x 17.8" L

TUBE - from hose to extension cylinder, closed end

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY - extension, for correct assembly and components, see Figures 8-118 - 8-122

1шт.

34

L103658

TUBE ASSY.,0.625" OD x 69.8" L

TUBE - from hose to extension cylinder, rod end

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

37

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

1шт.

38

D38648

BLOCK

SPACER - tube clamp

1шт.

39

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

1шт.

40

D141912

HOSE ASSY.

HOSE - 102" (2590 mm) long, to bucket cylinder, extendable dipper models

2шт.

41

D144937

BOLT

U-BOLT - bucket hose

2шт.

42

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

43

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.
