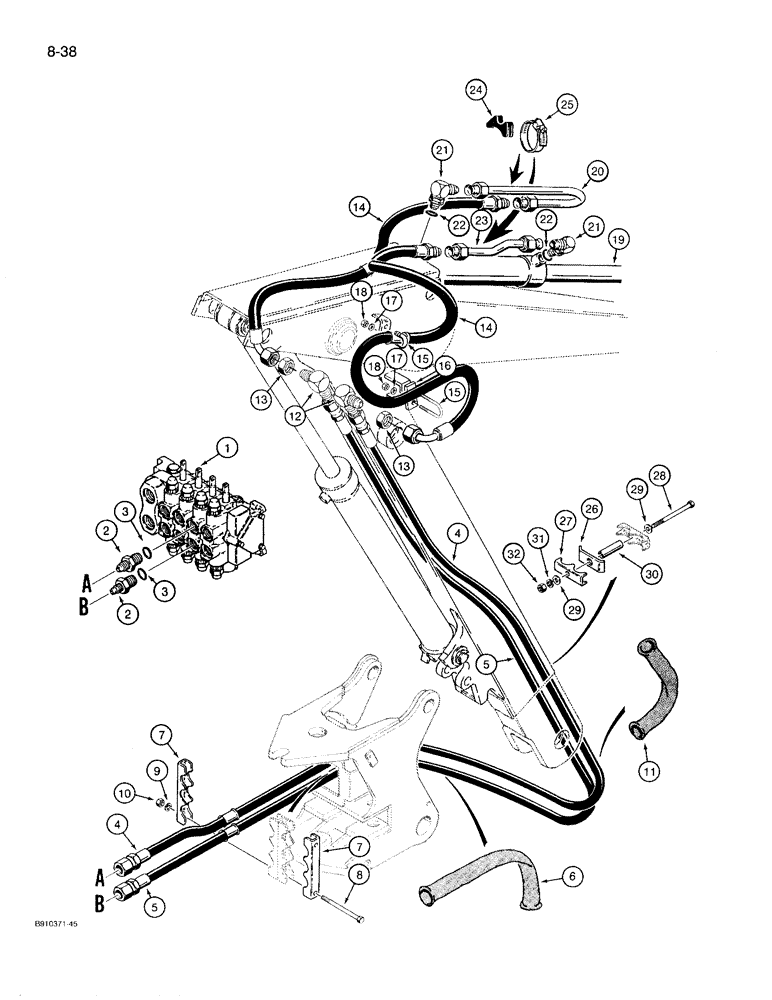

Запчасти Case 780D (8-038) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, P.I.N. JJG0071751 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-70 or 8-72

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

D144876

HOSE ASSY.

HOSE - 3760 mm long, backhoe control valve upper port to bucket cylinder rod end tube

1шт.

5

D144877

HOSE ASSY.

HOSE - 3765 mm long, backhoe control valve lower port to bucket cylinder closed end tube

1шт.

6

D144243

SLEEVE

- hose protection

2шт.

7

D140847

CLAMP

- hose, at swing tower

2шт.

8

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex head, 1/2" - 13 NC x 5-1/2", plated

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

D144244

SLEEVE

- hose protection

2шт.

12

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

13

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

14

D147162

HOSE ASSY.

HOSE - 1730 mm long, tube to bucket cylinder, see Figure 8-44 item 40 for bucket cylinder hose used on models with extendable dipper

2шт.

15

D144937

BOLT

U-BOLT - hose clamp

4шт.

16

D144201

PLATE

- spacer

1шт.

17

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

8шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

8шт.

19

G105857

CYLINDER

ASSEMBLY - bucket, parts list Figure 8-116

1шт.

20

L103644

TUBE ASSY.,15, 4.47" L

TUBE - bucket cylinder, closed end

1шт.

21

L114092

ELBOW

- 90 degree, special, Includes: Ref. 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

23

D146222

TUBE ASSY.

TUBE - bucket cylinder, rod end

1шт.

24

L79937

SADDLE

SPACER - tube

2шт.

25

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

26

D141293

CLAMP

- hose

1шт.

27

D137599

CLAMP

- hose

1шт.

28

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex head, 1/2" - 13 NC x 5-1/2", plated

1шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

2шт.

30

D144418

SPACER

- hose clamp

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
