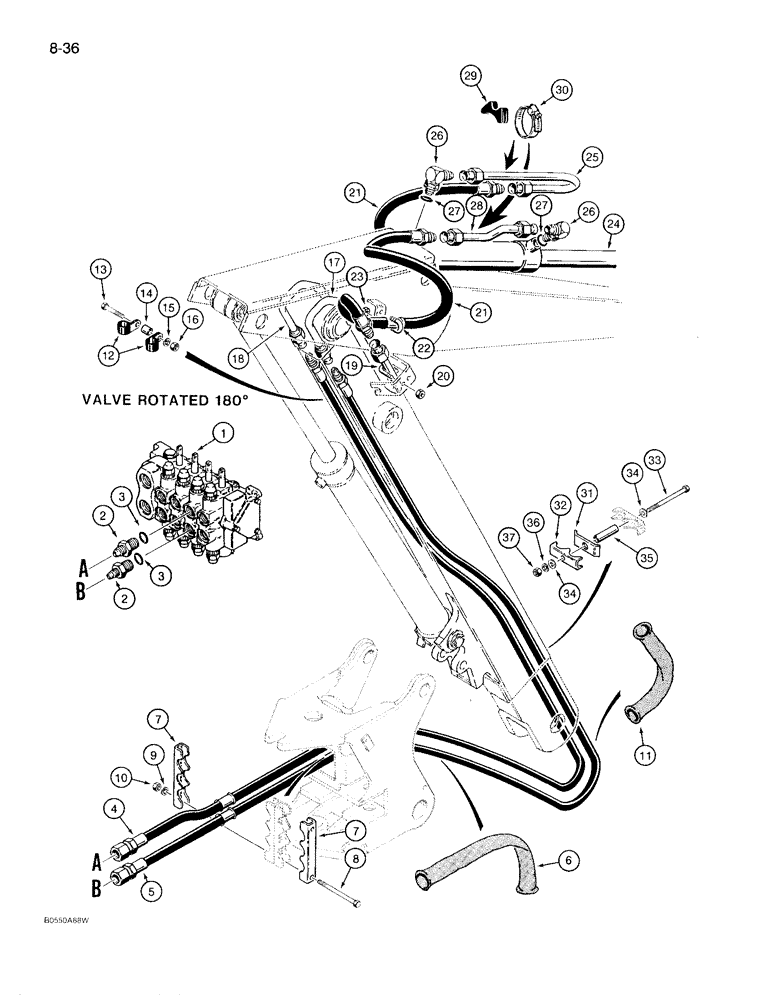

Запчасти Case 780D (8-036) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JJG0071751 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-70 or 8-72

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

D141008

HOSE ASSY.

HOSE - 162 - 13/16" (4135 mm) long, backhoe control valve upper port to bucket cylinder rod end tube

1шт.

5

D141006

HOSE ASSY.

HOSE - 163" (4140 mm) long, backhoe control valve lower port to bucket cylinder closed end tube

1шт.

6

D141397

SLEEVE

- hose protection

2шт.

7

D140847

CLAMP

- hose, at swing tower

2шт.

8

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

D141398

SLEEVE

- hose protection

2шт.

12

D34033

CLAMP

- hose

2шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

14

D34032

SPACER

- hose clamp

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

17

D141147

TUBE ASSY.

TUBE - right-hand side of boom

1шт.

18

D141152

TUBE ASSY.

TUBE - left-hand side of boom

1шт.

19

L78948

U-BOLT

- hose clamp

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

21

D141911

HOSE ASSY.

HOSE - 53" (1345 mm) long, tube to bucket cylinder, see Figure 8-40 Ref. 40 for bucket cylinder hose used on models with extendable dipper

2шт.

22

D144937

BOLT

U-BOLT - hose clamp

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

24

G105857

CYLINDER

ASSEMBLY - bucket, parts list Figure 8-116

1шт.

25

L103644

TUBE ASSY.,15, 4.47" L

TUBE - bucket cylinder, closed end

1шт.

26

L114092

ELBOW

- 90 degree, special, Includes: Ref. 27

2шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

28

L103629

TUBE ASSY.

TUBE - bucket cylinder, rod end

1шт.

29

L79937

SADDLE

SPACER - tube

2шт.

30

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

31

D141293

CLAMP

- hose

1шт.

32

D137599

CLAMP

- hose

1шт.

33

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

34

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

2шт.

35

D144418

SPACER

- hose clamp

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
