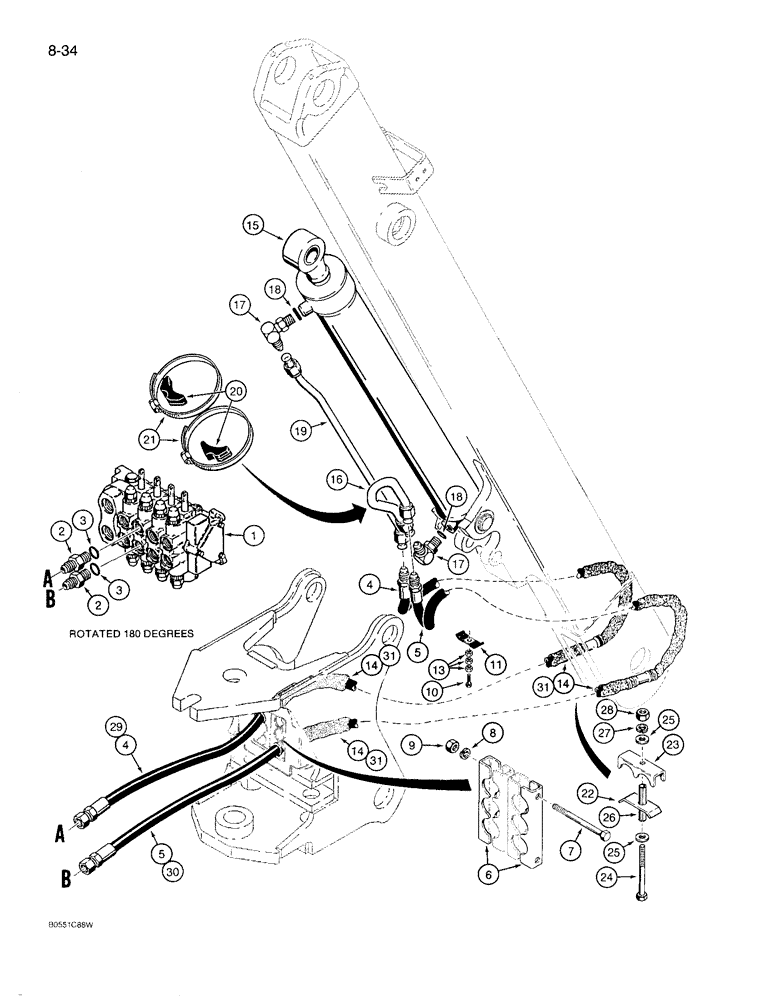

Запчасти Case 780D (8-034) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-70 or 8-72

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

D141003

HOSE ASSY.

HOSE - 103-15/16" (2640 mm) long, with two metal hose sleeves, backhoe control valve upper port to dipper cylinder rod end tube, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

5

D141005

HOSE ASSY.

HOSE - 105-1/8" (2670 mm) long, with two metal hose sleeves, backhoe control valve lower port to dipper cylinder closed end tube, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

6

D140847

CLAMP

- hose, at swing tower

2шт.

7

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

11

D40236

CLAMP

- hose

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

14

D141397

SLEEVE

- hose protection, Serial Range: -JJG0071751

2шт.

Prior to P.I.N. JJG0071751

1шт.

15

G103050

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-114

1шт.

16

L103622

TUBE ASSY.,1" OD

TUBE - dipper cylinder, closed end

1шт.

17

L114092

ELBOW

- 90 degree, special, Includes: Ref. 18

2шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

19

L103700

TUBE ASSY.,1" OD x 42.02" L

TUBE - dipper cylinder, rod end

1шт.

20

L79937

SADDLE

SPACER - rubber, tube clamp

2шт.

21

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to dipper cylinder

2шт.

22

D141293

CLAMP

- hose

1шт.

23

D137599

CLAMP

- hose

1шт.

24

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

1шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

2шт.

26

D144418

SPACER

- hose clamp

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

29

D146402

HOSE ASSY.

HOSE - 2640 mm long, with three metal hose sleeves, backhoe control valve upper port to dipper cylinder rod end tube, Start Serial: JJG0071751

1шт.

P.I.N. JJG0071751 and after.

1шт.

30

D146403

HOSE ASSY.

HOSE - 2670 mm long, with three metal hose sleeves, backhoe control valve lower port to dipper cylinder closed end tube, Start Serial: JJG0071751

1шт.

P.I.N. JJG0071751 and after.

1шт.

31

D144243

SLEEVE

- hose protection, Start Serial: JJG0071751

2шт.

P.I.N. JJG0071751 and after.

1шт.
