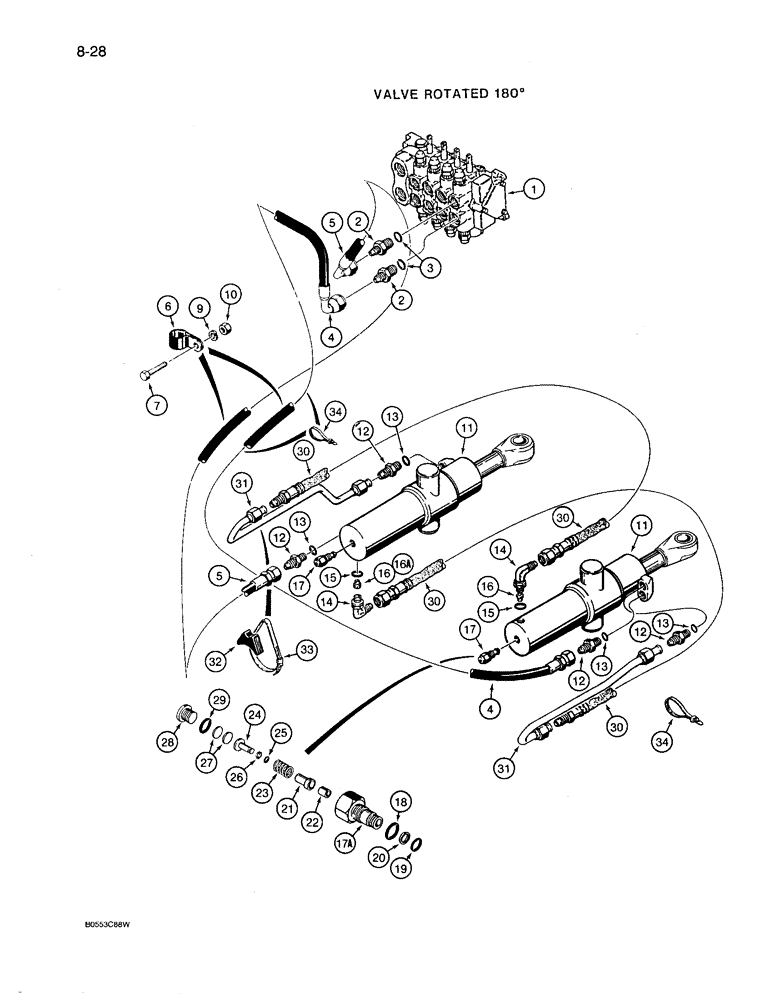

Запчасти Case 780D (8-028) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-70 or 8-72

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

D141772

HOSE ASSY.

HOSE - 71-11/16" (1820 mm) long, backhoe control valve lower port to rod end of right-hand swing cylinder

1шт.

5

D141773

HOSE ASSY.

HOSE - 59-7/8" (1520 mm) long, backhoe control valve upper port to rod end of left-hand swing cylinder

1шт.

6

R14668

CLAMP

- swing cylinder, Serial Range: hose-chassis

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components, see Figure 8-108

2шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 13 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

16

L108874

RESTRICTOR

- check, 5/32 inch orifice, swing cylinder, used on models with or without extendable dipper, used with all backhoe valves except D149989 and D149990

2шт.

16a

D150321

RESTRICTOR

- check, 7/32 inch orifice, swing cylinder, used on models with or without extendable dipper, used with D149989 or D149990 backhoe valve

2шт.

17

L78723

LOCK VALVE

VALVE ASSEMBLY - relief, swing cylinder, Includes: Ref. 17A - 29

2шт.

17a

D47667

CAP

BODY - relief valve

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body, outer

1шт.

19

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- body, inner

1шт.

20

D37071

RING

- backup, inner O-ring

1шт.

21

D37074

PLUNGER

- relief valve

1шт.

22

D37075

SEAT

- plunger

1шт.

23

D37148

SPRING

- plunger

1шт.

24

N7764

SPRING

GUIDE - plunger spring

1шт.

25

D40356

O-RING

- spring guide

1шт.

26

D40357

RING

- backup, O-ring

1шт.

27

L36077

SHIM

- spring guide

1шт.

28

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Relief valve, Incl Ref 29 Hex Soc, 3/4"-16 ORB

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

30

D141017

HOSE ASSY.

HOSE - 22-1/16" (560 mm) long, crossover

2шт.

31

D142078

TUBE ASSY.

TUBE - swing cylinder

2шт.

32

D38648

BLOCK

SPACER - tube

2шт.

33

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder

2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
