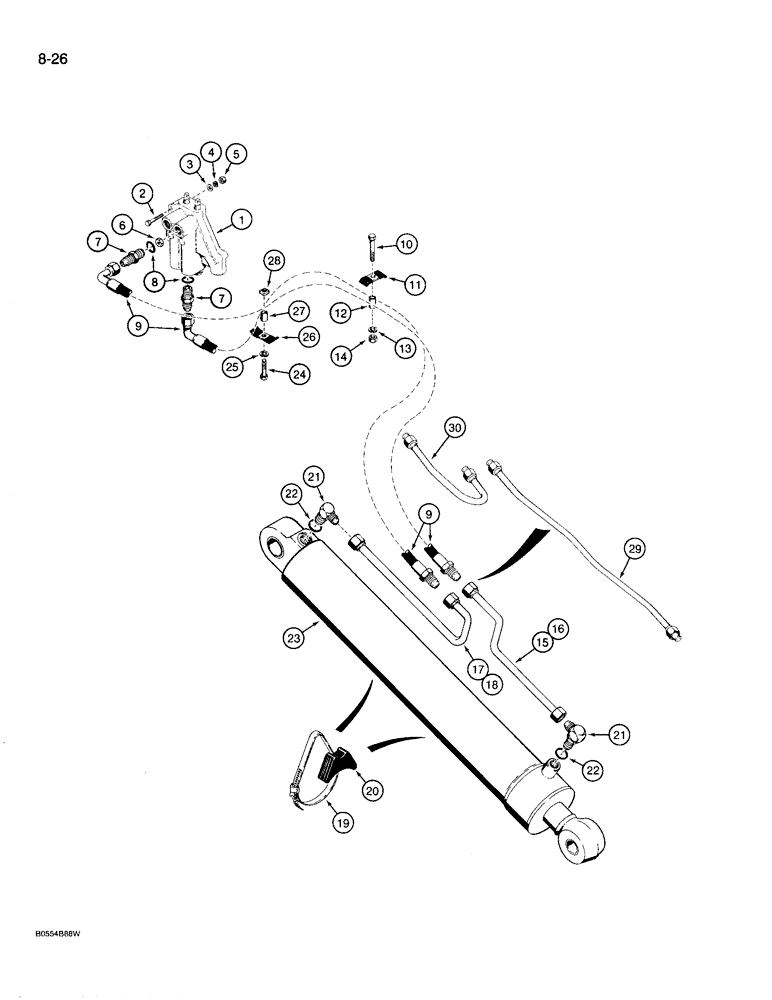

Запчасти Case 780D (8-026) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D124856

VALVE

ASSEMBLY - stabilizer control, parts list Figure 8-68

1шт.

2

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

D61933

RESTRICTOR

- upper control valve port

2шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 8

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

9

D141771

HOSE ASSY.

HOSE - 43-5/16" (1100 mm) long, stabilizer control valve upper ports to stabilizer cylinder rod ends and stabilizer control valve lower ports to stabilizer cylinder closed ends

4шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

11

D40236

CLAMP

- hose, mounts to chassis frame

2шт.

12

D76210

SPACER

- hose clamp

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 3/8 inch NC

2шт.

15

D138079

TUBE ASSY.

TUBE - stabilizer cylinder rod end, right-hand, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

16

D138077

TUBE ASSY.

TUBE - stabilizer cylinder rod end, left-hand, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

17

D138083

TUBE ASSY.

TUBE - stabilizer cylinder closed end, right-hand, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

18

D138081

TUBE ASSY.

TUBE - stabilizer cylinder closed end, left-hand, Serial Range: -JJG0071751

1шт.

Prior to P.I.N. JJG0071751

1шт.

19

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

4шт.

20

D38648

BLOCK

SPACER - tube clamp

4шт.

21

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 22

4шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

23

G103057

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, parts list Figure 8-106

2шт.

24

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

D40236

CLAMP

- hose

2шт.

27

D76210

SPACER

- hose clamp

2шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8", mounts in cage nut on chassis frame

2шт.

29

D145177

TUBE ASSY.

TUBE - stabilizer cylinder rod end, Start Serial: JJG0071751

2шт.

P.I.N. JJG0071751 and after.

1шт.

30

D144467

TUBE ASSY.

TUBE - stabilizer cylinder closed end, Start Serial: JJG0071751

2шт.

P.I.N. JJG0071751 and after.

1шт.
