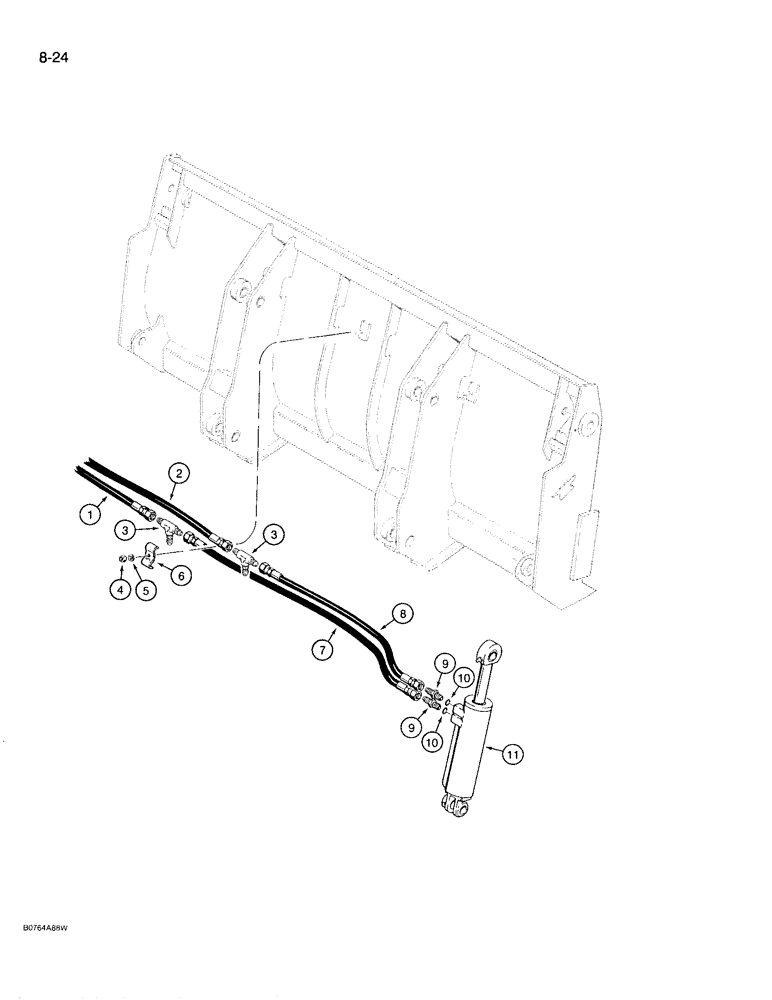

Запчасти Case 780D (8-024) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT CLAM BUCKET (08) - HYDRAULICS

1

D143219

HOSE

- 36" (914 mm) long, lower left-hand

1шт.

P/N D143219 36" hose - This now subs to P/N 100630A1. When using this replacement number, Ref. 9 P/N 218-5066 adapter is not required.

1шт.

2

D143218

HOSE

- 54" (1372 mm) long, upper left-hand, no longer available, order D143221

1шт.

3

218-806

TEE,7/8"-14, 37 Degree, Blkhd

Hydraulic, Clam cylinder hoses 7/8"-14, 37º, Blkhd

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

S64754

CLAMP - hose support

3шт.

7

D143221

HOSE

- 53" (1346 mm) long, lower right-hand and upper left-hand

1-2шт.

D143221 53" hose - This now subs to part nbr 100632A1. When using this replacement number, Ref. #9 - 218-5066 adapter is not required.

1шт.

8

D143220

HOSE

- 37" (940 mm) long, upper right-hand

1шт.

D143220 37" hose - This will sub to part nbr 100631A1. When using this replacement number, Ref. #9 - 218-5066 adapter is not required.

1шт.

9

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, cylinder to hose, Incl. Ref. 10 7/8"-14, 37º x 3/4"-16, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

0-RING - adapter

1шт.

11

D143217

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, parts list Figure 8-104

2шт.
