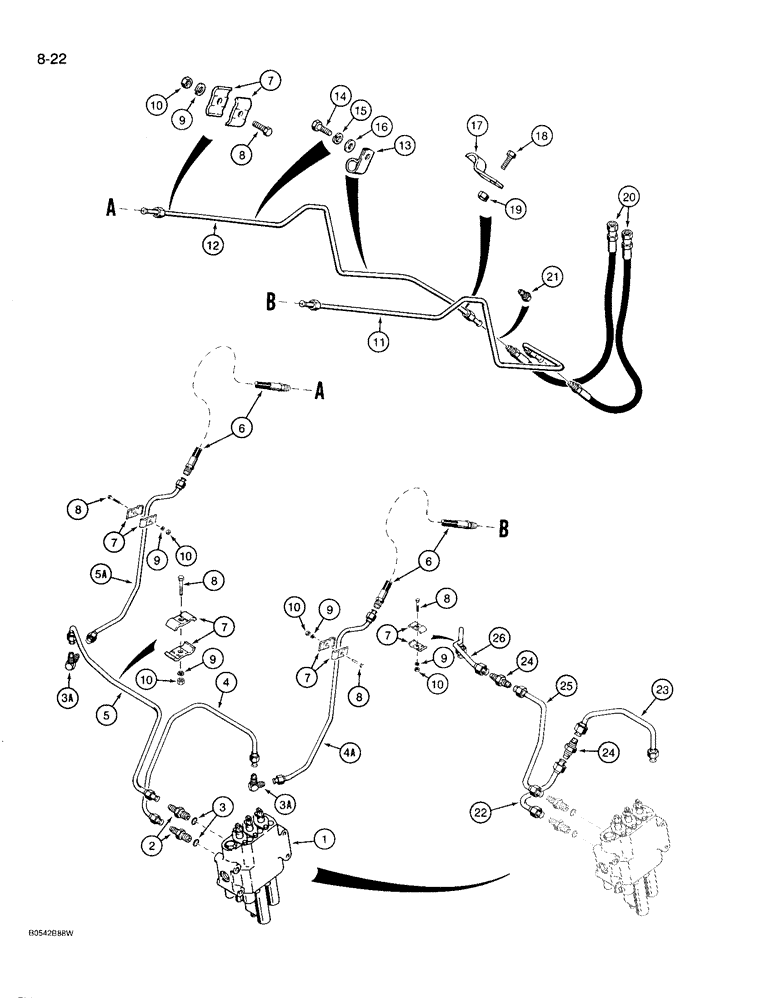

Запчасти Case 780D (8-022) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, LOADER VALVE TO LIFT FRAME (08) - HYDRAULICS

1

D138276

VALVE

ASSEMBLY - loader control, three spool, parts list Figure 8-58, mounting hardware on Figure 8-14

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

3a

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree

2шт.

4

D141204

TUBE ASSY.

TUBE - at loader control valve lower auxiliary port, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

4a

D141216

TUBE ASSY.

TUBE - connecting, tube to hose, right-hand clam cylinder

1шт.

5

D141202

TUBE ASSY.

TUBE - at loader control valve upper auxiliary port, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

5a

D141214

TUBE ASSY.

TUBE - connecting, tube to hose, left-hand clam cylinder

1шт.

6

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - 37" (940 mm) long, loader control valve to lift frame and tubes

2шт.

7

L100272

CLAMP

- tube

10шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

10

9635082

NUT,5/16" - 18, Gr 5

5шт.

11

D141898

TUBE ASSY.

TUBE - right-hand clam cylinder

1шт.

12

D141900

TUBE ASSY.

TUBE - left-hand clam cylinder

1шт.

13

D34174

CLAMP,5/8", 1/2" Bolt

- tube

4шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

17

D143430

CLAMP

- tube

2шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

20

L50629

HOSE ASSY.

HOSE - 48" (1219 mm) long, lift frame tubes to tees on clam bucket

2шт.

21

218-776

PLUG,7/8"-14, 37 Degree

- hex, if used, not required when clam bucket is attached

2шт.

22

D147365

TUBE ASSY.

TUBE - at loader control valve lower auxiliary port, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

23

D147367

TUBE ASSY.

TUBE - connecting, lower auxiliary tube to elbow, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

24

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, 7/8-14 inch flare, Start Serial: JJG0071802

2шт.

P.I.N. JJG0071802 and after.

1шт.

25

D149332

TUBE ASSY.

TUBE - at loader control valve upper auxiliary port, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

26

D149334

TUBE ASSY.

TUBE - connecting, upper auxiliary tube to elbow, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.
