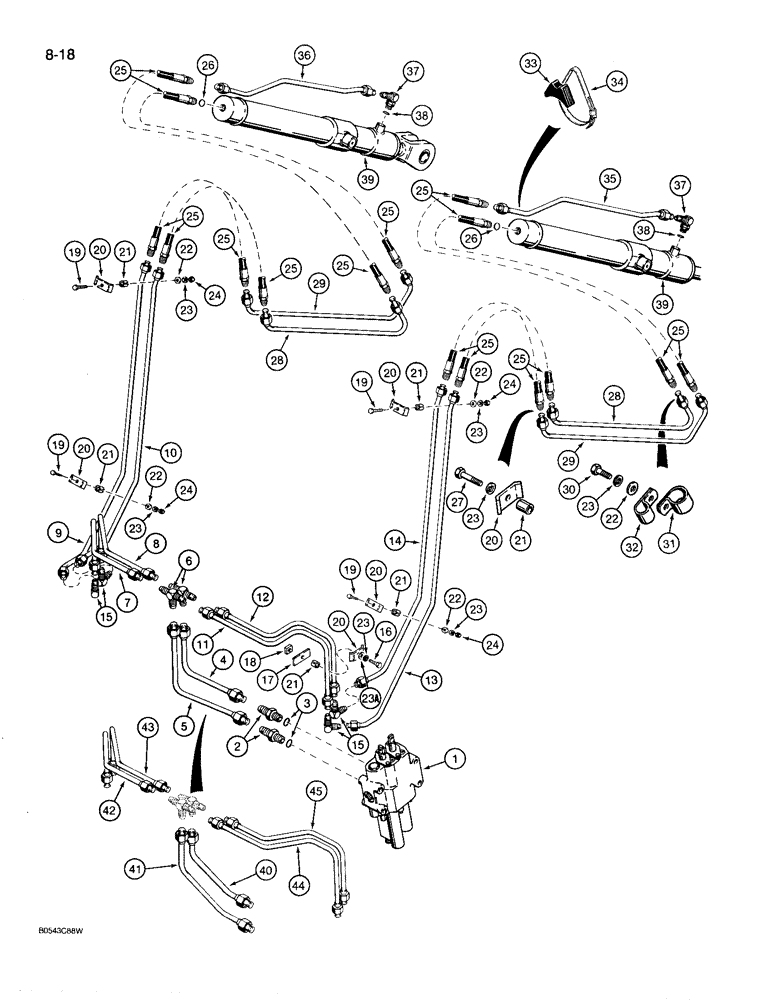

Запчасти Case 780D (8-018) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-56 or 8-58, mounting hardware on Figure 8-14

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

D141198

TUBE ASSY.

TUBE - bucket spool upper port to tee, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

5

D141200

TUBE ASSY.

TUBE - bucket spool lower port to tee, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

6

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male, tube

2шт.

7

D141232

TUBE

- rear, at tee, to closed end of left-hand bucket cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

8

D141230

TUBE

- front, at tee, to rod end of left-hand bucket cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

9

D141240

TUBE

- on chassis upright, to closed end of left-hand bucket cylinder

1шт.

10

D141238

TUBE

- on chassis upright, to rod end of left-hand bucket cylinder

1шт.

11

D141212

TUBE

- rear, at tee, to closed end of right-hand bucket cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

12

D141210

TUBE

- front, at tee, to rod end of right-hand bucket cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

13

D141224

TUBE

- on chassis upright, to closed end of right-hand bucket cylinder

1шт.

14

D141222

TUBE

- on chassis upright, to rod end of right-hand bucket cylinder

1шт.

15

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree

4шт.

16

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

17

D141598

BAR

- spacer

1шт.

18

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC

2шт.

19

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

20

A13622

PLATE, LOCKING

CLAMP - tube

8шт.

21

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube clamp

8шт.

22

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

23a

495-21044

WASHER,3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - 37" (940 mm) long, bucket cylinder

8шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose to bucket cylinder

2шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

L103125

TUBE,0.625" OD

- on lift arm, hose to cylinder rod end tube

2шт.

29

L105576

TUBE,0.625" OD x 18.64, 25.68" L

- on lift arm, hose to cylinder closed end hose

2шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

A27256

CLAMP

- tube, large

2шт.

32

D34174

CLAMP,5/8", 1/2" Bolt

- tube, small

2шт.

33

D38648

BLOCK

SPACER - rubber, tube and cylinder

2шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

35

D128134

TUBE

- right-hand bucket cylinder rod end

1шт.

36

L108581

TUBE ASSY.,0.625" OD

TUBE - left-hand bucket cylinder rod end

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

39

REF

INSTRUCTION

CYLINDER ASSEMBLY - loader bucket, for correct assembly and components, see Figure 8-102

2шт.

40

D147063

TUBE ASSY.

TUBE - bucket spool upper port to tee, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

41

D147065

TUBE ASSY.

TUBE - bucket spool lower port to tee, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

42

D146805

TUBE ASSY.

TUBE - rear, at tee, to closed end of left-hand bucket cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

43

D146801

TUBE ASSY.

TUBE - front, at tee, to rod end of left-hand bucket cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

44

D146803

TUBE ASSY.

TUBE - rear, at tee, to closed end of right-hand bucket cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

45

D146677

TUBE ASSY.

TUBE - front, at tee, to rod end of right-hand bucket cylinder, if used, Start Serial: JJG0071802

1шт.
