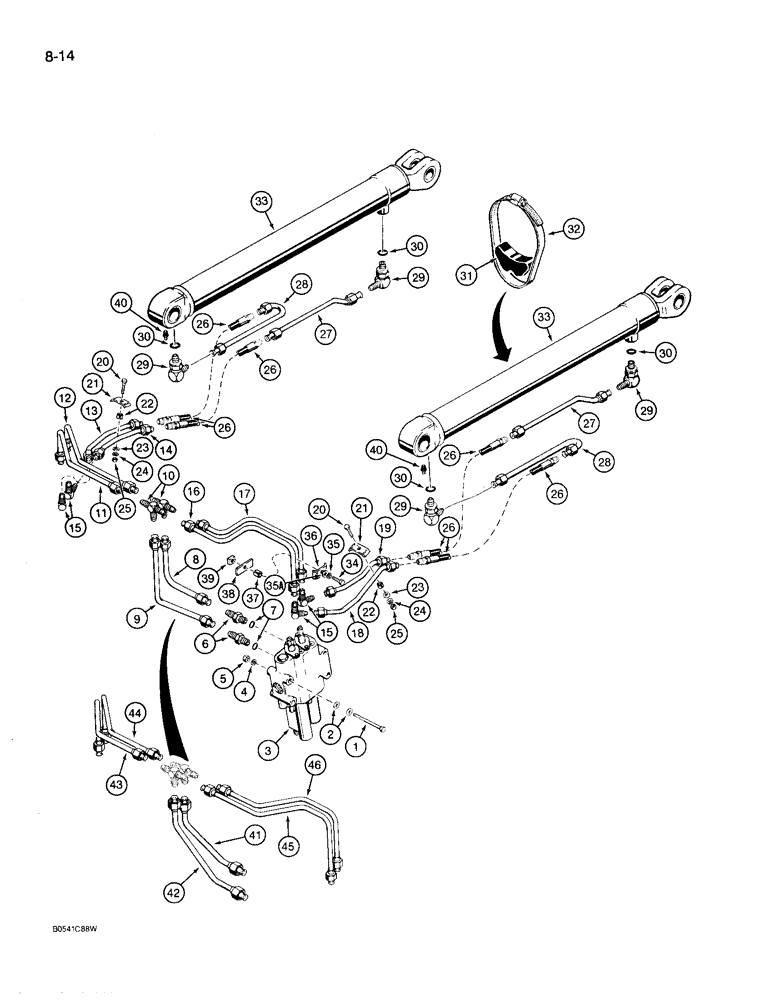

Запчасти Case 780D (8-014) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

2

495-11053

WASHER,1/2", SAE

3-6шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-56 or 8-58

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

8

D141194

TUBE ASSY.

TUBE - lift spool upper port to tee, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

9

D141196

TUBE ASSY.

TUBE - lift spool lower port to tee, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

10

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male, loader lift tubes

2шт.

11

D141228

TUBE ASSY.

TUBE - rear, at tee, to closed end of left-hand lift cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

12

D141226

TUBE ASSY.

TUBE - front, at tee, to rod end of left-hand lift cylinder, if used, Serial Range: -JJG0071802

1шт.

Prior to P.I.N. JJG0071802

1шт.

13

D141236

TUBE ASSY.

TUBE - at hose, to closed end of left-hand lift cylinder

1шт.

14

D141234

TUBE ASSY.

TUBE - at hose, to rod end of left-hand lift cylinder

1шт.

15

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree

4шт.

16

D141208

TUBE ASSY.

TUBE - rear, at tee, to closed end of right-hand lift cylinder, if used, Serial Range: -JJG0071802

1шт.

17

D141206

TUBE ASSY.

TUBE - front, at tee, to rod end of right-hand lift cylinder, if used, Serial Range: -JJG0071802

1шт.

18

D141220

TUBE ASSY.

TUBE - at hose, to closed end of right-hand lift cylinder

1шт.

19

D141218

TUBE ASSY.

TUBE - at hose, to rod end of right-hand lift cylinder

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- split, tube clamp

2шт.

23

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D141685

HOSE ASSY.

HOSE - 28-1/2" (720 mm) long, control valve to lift cylinders

4шт.

27

L103146

TUBE,0.625" OD x 15.9, 1.65" L

- rod end of lift cylinders

2шт.

28

L103144

TUBE,0.625" OD x 19, 2.5" L

- closed end of lift cylinders

2шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 30

4шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

31

D38648

BLOCK

SPACER - rubber, tube and cylinder

4шт.

32

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder

4шт.

33

G103073

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader lift, parts list Figure 8-100

2шт.

34

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

35a

495-21044

WASHER,3/8"

1шт.

36

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

37

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- split, tube clamp

2шт.

38

D141598

BAR

- spacer

1шт.

39

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, not included with cylinder, purchase separately

2шт.

41

D147073

TUBE ASSY.

TUBE - lift spool upper port to tee, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

42

D147075

TUBE ASSY.

TUBE - lift spool lower port to tee, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

43

D146813

TUBE ASSY.

TUBE - rear, at tee, to closed end of left-hand lift cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

44

D146809

TUBE ASSY.

TUBE - front, at tee, to rod end of left-hand lift cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

45

D146811

TUBE ASSY.

TUBE - rear, at tee, to closed end of right-hand lift cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.

46

D146807

TUBE ASSY.

TUBE - front, at tee, to rod end of right-hand lift cylinder, if used, Start Serial: JJG0071802

1шт.

P.I.N. JJG0071802 and after.

1шт.
