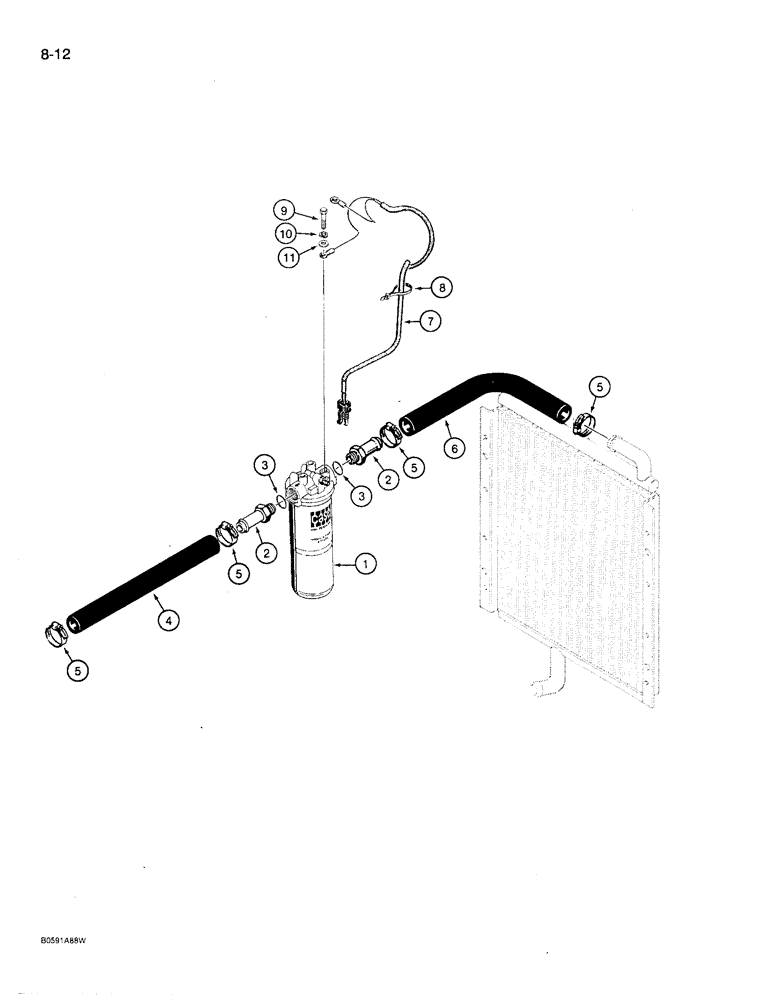

Запчасти Case 780D (8-012) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER TO FILTER (08) - HYDRAULICS

1

D141131

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-98

1шт.

2

217-176

FITTING,1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

- stem, straight, hose to filter, Includes: Ref. 3

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Stem fitting

1шт.

4

D141181

HYDRAULIC HOSE

HOSE - 18" (457 mm) long, filter to hydraulic reservoir

1шт.

5

S85429

CLAMP

- hose, filter to hydraulic reservoir and cooler

4шт.

6

D141180

HOSE

- 27" (686 mm) long, oil, Serial Range: cooler-filter

1шт.

7

D137702

HARNESS

- filter to front harness

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

195-104

WASHER,3/8"

- flat, , plated 3/8"

3шт.
