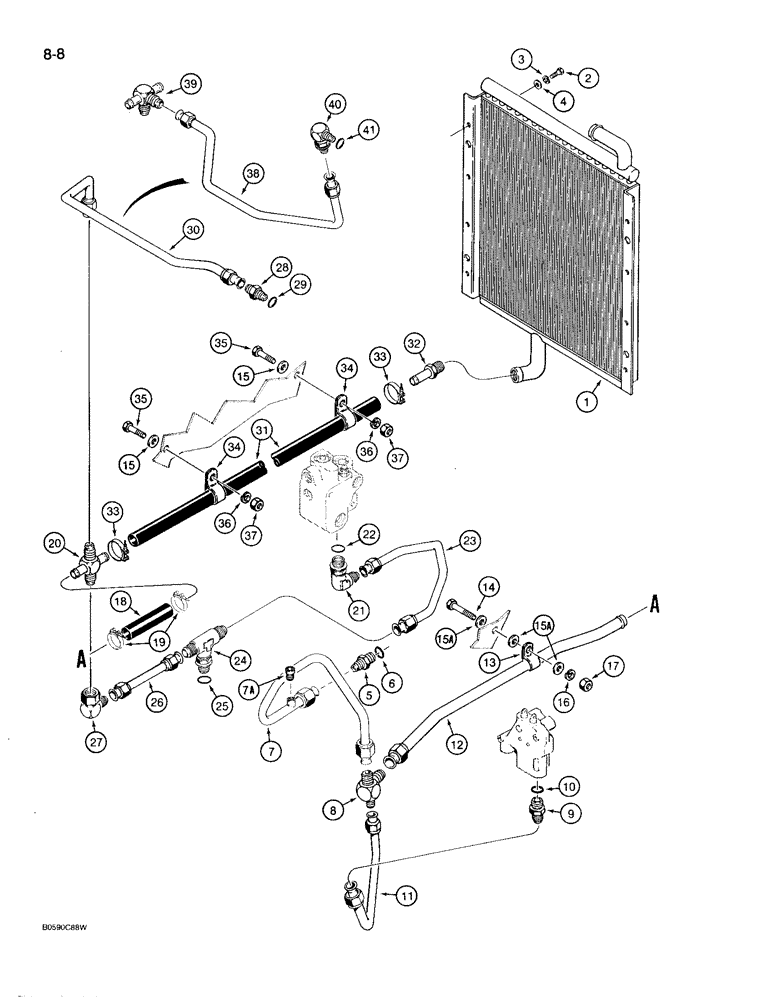

Запчасти Case 780D (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER AND RETURN LINES (08) - HYDRAULICS

1

A172097

COOLER, OIL

COOLER - oil, hydraulic system

1шт.

2

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated

12шт.

3

892-1108

LOCK WASHER,M8

plated M8

12шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

5

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, backhoe valve return port, lower, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

7

D141332

TUBE

- backhoe control valve return, models without extendable dipper

1шт.

7

D141330

TUBE ASSY.

TUBE - backhoe control valve return, models with extendable dipper

1шт.

7a

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT, if used, not required on models with hydraulic boom lock, see Figure 8-46 or 8-48 for hose used in place of plug

1шт.

8

L104115

TEE

- valve return tubes

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, stabilizer valve return port, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

11

D141334

TUBE

- stabilizer control valve return

1шт.

12

D141327

TUBE

- backhoe return

1шт.

13

D47198

CLAMP

- return, Serial Range: tube-chassis

1шт.

14

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

15

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

15a

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2 inch, hardened

3шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

18

D141697

HOSE

- 9" (229 mm) long, return, cut to required length from D129185 bulk hose, see below

1шт.

19

S85429

CLAMP

- hose

2шт.

20

D141582

CROSS

FITTING - four-way, used with D141336 tube, Ref. 30, if used

1шт.

21

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, from brake valve, Includes: Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

23

D141317

TUBE ASSY.

TUBE - brake valve to return line

1шт.

24

218-5505

TEE,1 1/16"-12, 37º x 7/8"-14 x 1 1/16"-12, O-Ring Br

- adjustable, at backhoe relief valve, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

26

D138174

TUBE ASSY.

TUBE - backhoe relief valve to return line

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at four-way fitting 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

28

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, used with D141336 tube, Ref. 30, if used, Incl. Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

30

D141336

TUBE

- crossover, from loader control valve, used with Ref. 20 and 28, if used

1шт.

31

D141683

HOSE

- 71" (1800 mm) long, backhoe return to oil cooler

1шт.

D129185

HOSE,38.1 mm ID x 863.60 mm

1шт.

32

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

- stem, straight

1шт.

33

D135549

CLAMP

- hose

2шт.

34

S98801

CLAMP

- return, Serial Range: hose-chassis

2шт.

35

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

38

D149336

TUBE ASSY.

TUBE - crossover, from loader control valve, used with Ref. 39 and 40, if used

1шт.

39

D146717

TEE

- special, used with D149336 tube, Ref. 38, if used

1шт.

40

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj. O-ring, used with D149336 tube, Ref. 38

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.
