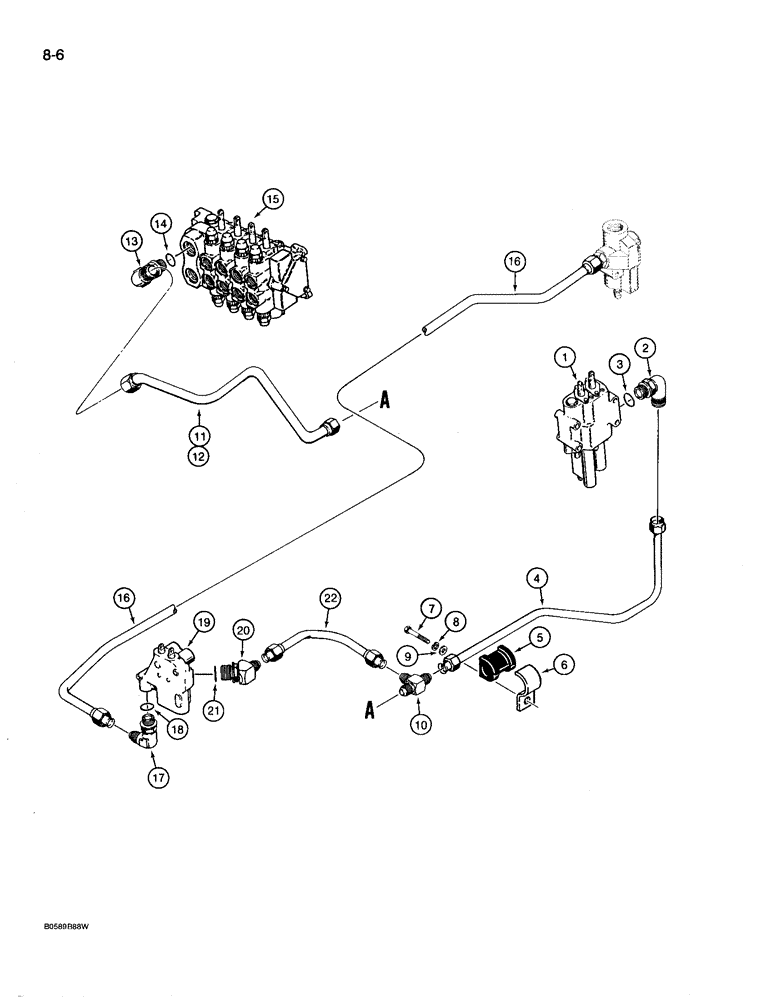

Запчасти Case 780D (8-006) - EQUIPMENT HYD. SYSTEM, BACKHOE SUPPLY FROM LOADER TO BACKHOE & BACKHOE TO SABILIZER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, parts list Figures 8-56 - 8-66

1шт.

2

L114092

ELBOW

- 90 degree, special, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

4

D141325

TUBE ASSY.

TUBE - from loader control valve to inlet backhoe supply

1шт.

5

D67297

BLOCK

INSULATOR - tube clamp

1шт.

6

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- tube

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1-3/4", plated

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

10

D140328

TEE

- special

1шт.

11

D146299

TUBE ASSY.

TUBE - backhoe supply, models without extendable dipper

1шт.

12

D145876

TUBE

- backhoe supply, models with extendable dipper

1шт.

13

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, adjustable, backhoe control valve inlet, Includes: Ref. 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-70 or 8-72

1шт.

16

D141377

TUBE ASSY.

TUBE - backhoe relief valve to stabilizer control valve inlet, supply

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

19

D124856

VALVE

ASSEMBLY - stabilizer control, parts list Figure 8-68

1шт.

20

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, at stabilizer valve, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

22

D141319

TUBE ASSY.

TUBE - stabilizer valve to backhoe supply tee

1шт.
