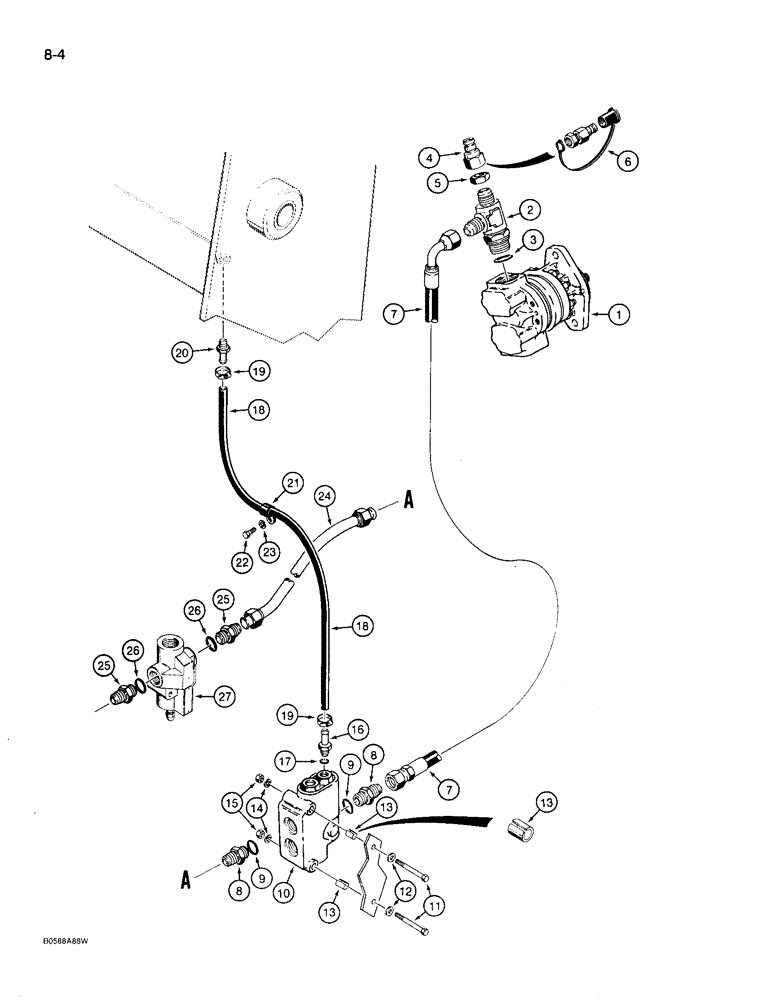

Запчасти Case 780D (8-004) - EQUIPMENT HYDRAULIC SYSTEM, BACKHOE SUPPLY FROM STEERING PUMP TO FLOW CONTROL & BACKHOE RELIEF VALVE (08) - HYDRAULICS

1

D127917

PUMP

ASSEMBLY - front, steering and backhoe hydraulic, parts list Figure 8-52, for mounting hardware see Figure 8-2

1шт.

2

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- adjustable, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

4

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - pressure check, includes nut, component parts not serviced separately, Includes Ref. 5

1шт.

5

129-132

NUT,1 1/4"-12, G5

Coupling 1 1/4"-12, G5

1шт.

6

H434163

DUST CAP

CAP - dust

1шт.

7

D138296

HOSE ASSY.

HOSE - 25-5/8" (650 mm) long, hydraulic pump to flow control valve

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

10

D132476

VALVE

ASSEMBLY - flow control, hydraulic, parts list Figure 8-94

1шт.

11

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

2шт.

12

196-2

WASHER,3/8" x 7/8" x .083", HDN

- flat, 5/16 inch, hardened

2шт.

13

D76212

BUSHING

SPACER - split

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

- stem, straight, hose, Includes: Ref. 17

1шт.

17

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, stem fitting

1шт.

18

D140023

HOSE

- 36" (915 mm) long, flow control, cut to required length from A21561 bulk hose, see below

1шт.

19

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

20

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, straight, hose, at hydraulic reservoir

1шт.

21

49836

CLAMP

- hose

1шт.

22

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm (8.8), plated

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

D141315

TUBE

- flow control valve to relief valve

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

27

D131348

LOCK VALVE

VALVE ASSEMBLY - backhoe relief, parts list Figure 8-96

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
