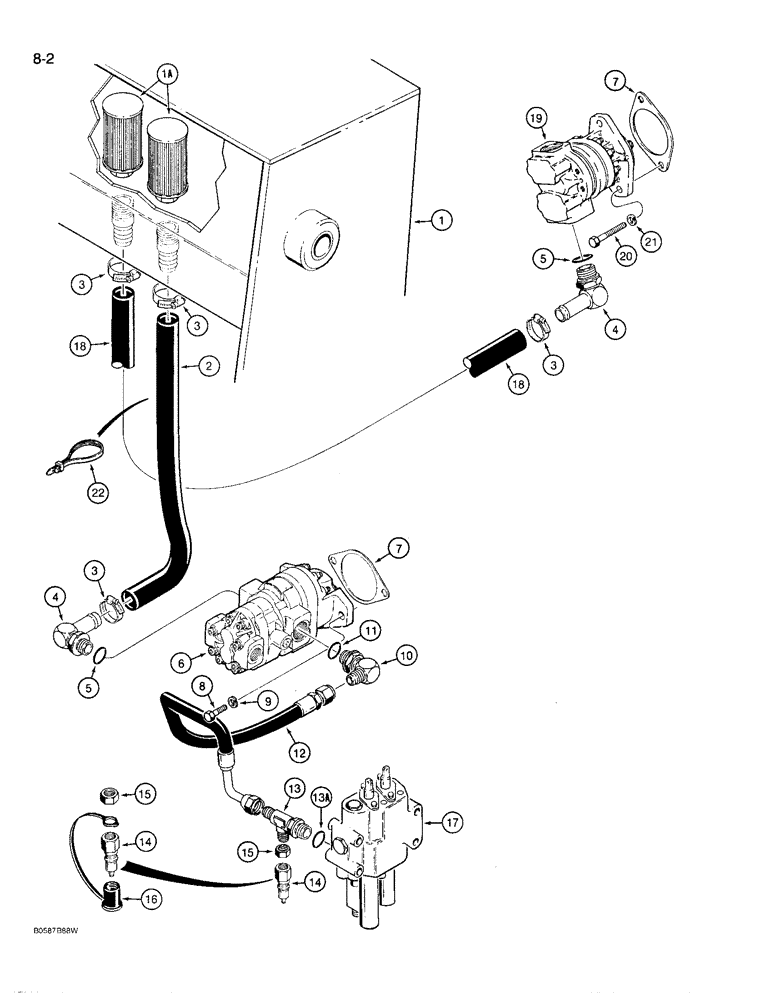

Запчасти Case 780D (8-002) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO HYDRAULIC PUMPS & LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 9-56

1шт.

1a

D128526

FILTER CARTRIDGE

SCREEN - suction, reservoir filter

2шт.

2

D142097

HOSE

- 444 mm long, suction, to rear pump

1шт.

3

D135549

CLAMP

- hose

4шт.

4

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable

2шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Stem fitting

1шт.

6

D138438

PUMP

ASSEMBLY - rear, equipment hydraulic, parts list Figure 8-54

1шт.

7

A77441

GASKET

- rear pump to transmission, front, Serial Range: pump-engine

2шт.

8

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, rear pump outlet

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

D150127

HOSE

- 675 mm long, rear pump to loader control valve, supply

1шт.

13

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- pressure check

1шт.

13a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

14

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - pressure check, includes nut, component parts not

1шт.

15

129-132

NUT,1 1/4"-12, G5

Coupling 1 1/4"-12, G5

1шт.

16

H434163

DUST CAP

CAP - dust

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, parts list Figures 8-56 - 8-66

1шт.

18

S120225

HOSE,1.25" ID x 38.00", SAE 100R3 Class H

- Reservoir to front hydraulic pump 1.25" ID x 38.00", SAE 100R3 Class H

1шт.

19

D127917

PUMP

ASSEMBLY - front, steering and backhoe hydraulic, parts list Figure 8-52

1шт.

20

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
