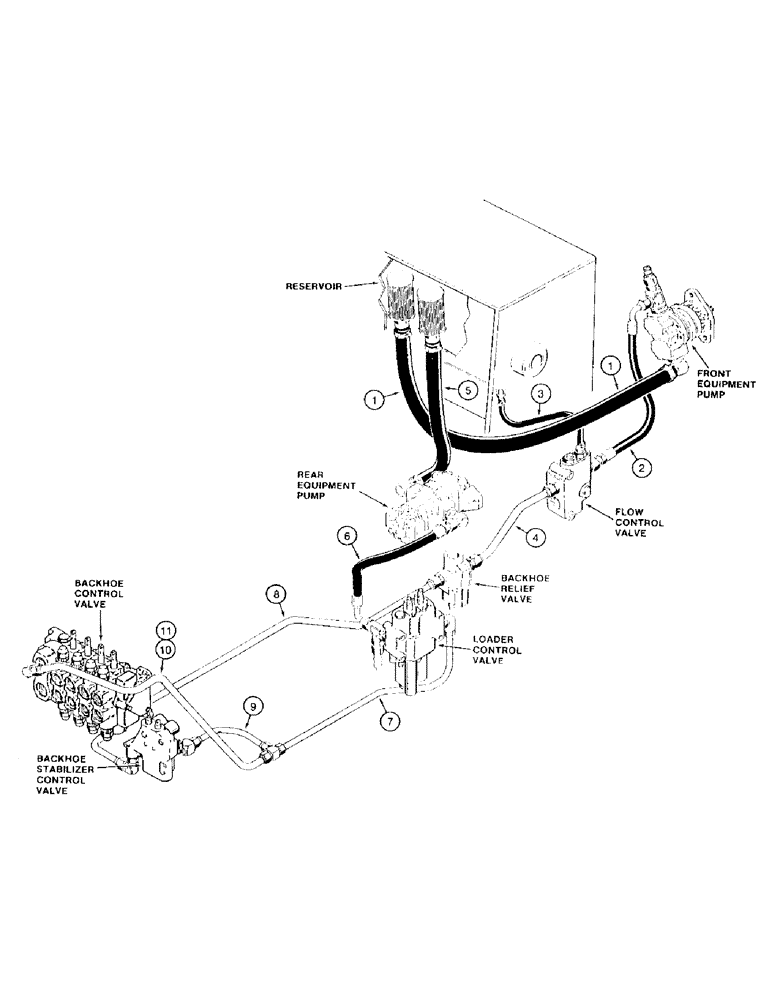

Запчасти Case 780D (1-12) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, RESERVOIR TO PUMPS & VALVES (00) - PICTORIAL INDEX

1

Hose from hydraulic reservoir to front equipment hydraulic pump, Page 8-3

1шт.

2

Hose at front equipment pump to flow control valve, Page 8-5

1шт.

3

Hose at upper port of flow control valve from reservoir, page 8-5

1шт.

4

Tube from flow control valve upper side port to backhoe relief valve, Page 8-5

1шт.

5

Suction hose from hydraulic reservoir to rear equipment hydraulic pump, Page 8-3

1шт.

6

Supply hose from rear equipment hydraulic pump to loader control valve, Page 8-3

1шт.

7

Loader control valve tube to tee, Page 8-7

1шт.

8

Supply tube at backhoe relief valve to stabilizer control valve inlet, Page 8-7

1шт.

9

Stabilizer control valve tube to backhoe supply tee, Page 8-7

1шт.

10

Backhoe control valve supply tube used on models without extendable dipper, Page 8-7

1шт.

11

Backhoe control valve supply tube used on models with extendable dipper, Page 8-7

1шт.
