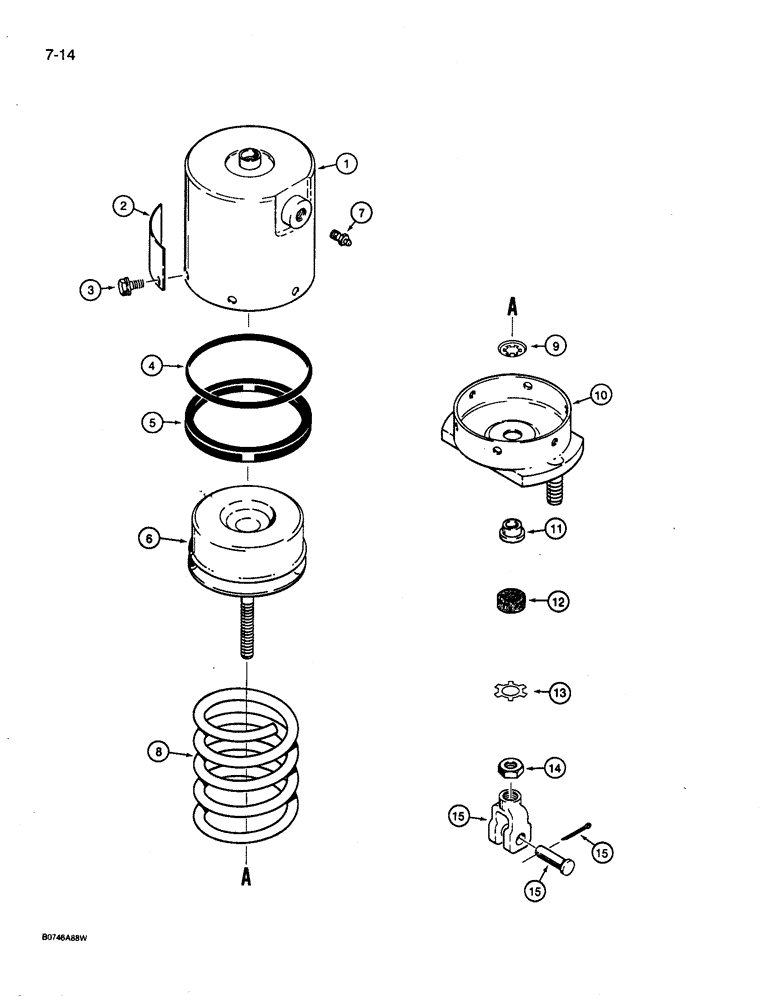

Запчасти Case 780D (7-14) - PARKING BRAKE ACTUATOR (07) - BRAKES

D144270

ACTIVATOR

ACTUATOR ASSEMBLY - parking brake, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - parking brake actuator

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - warning

1шт.

3

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

- hex flange head, 5/16" - 24 NF x 1/2"

6шт.

4

D143485

O-RING,4 1" ID x 5" OD

- piston

1шт.

Part of service kit P/N D143482.

1шт.

5

D143486

NYLON BEARING,5" OD x 0.18"

BEARING - piston, plastic

1шт.

Part of service kit P/N D143482.

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - bleed

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

9

Z2456

SNAP RING

RING - retaining, internal, bushing

1шт.

Part of service kit P/N D143482.

1шт.

10

NSS

NOT SOLD SEPARAT

BASE - mounting plate

1шт.

11

D143488

BUSHING

- piston rod

1шт.

Part of service kit P/N D143482.

1шт.

12

D143489

WIPER

- felt

1шт.

Part of service kit P/N D143482.

1шт.

13

D143487

SNAP RING,1.00", Int, #100

RING - retaining, external

1шт.

Part of service kit P/N D143482.

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF

1шт.

15

D147532

FORK

CLEVIS ASSEMBLY - includes clevis pin and cotter pin which are not serviced separately

1шт.

D143482

BRAKE PACKAGE

KIT - service, Includes: Ref. 4, 5, 9 and 11 - 13, plus D82838 lubricant and a piston bearing compressor which is not serviced separately

1шт.
