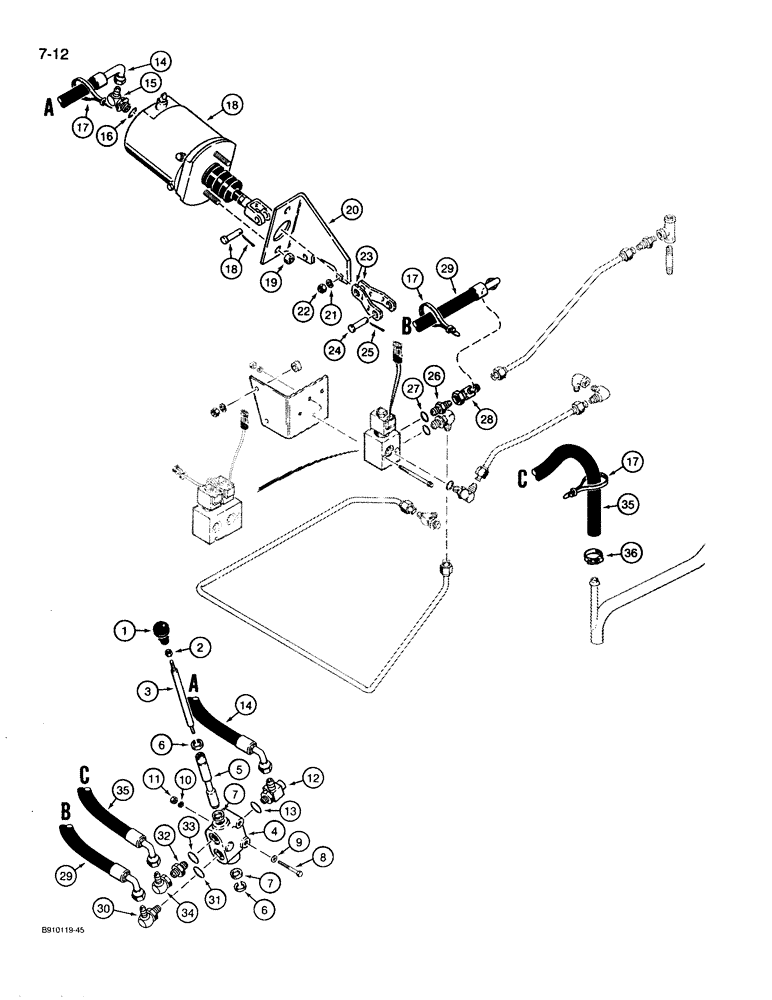

Запчасти Case 780D (7-12) - PARKING BRAKE HYDRAULIC CIRCUIT (07) - BRAKES

1

D139002

KNOB

- rod

1шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

3

D143631

ROD

- control, parking brake, Includes: Ref. 4 - 7

1шт.

D144417

VALVE

ASSEMBLY - selector

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - selector valve

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - selector valve

1шт.

6

T13433

RING

- retaining, spool

2шт.

7

N9980

SEAL

- spool

2шт.

8

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

9

495-21038

WASHER,5/16"

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

D143630

TEE

- special, attaches to park brake switch, Ref. 15 on Figure 4-18, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

14

D143701

HOSE ASSY.

HOSE - 52-3/8" (1330 mm) long, selector valve to brake actuator

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

18

D144270

ACTIVATOR

ACTUATOR ASSEMBLY - parking brake, parts list Figure 7-14

1шт.

19

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8" - 18 NF, plated

2шт.

20

D137375

BRACKET

- actuator mounting, Serial Range: mounts-transmission

1шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

22

129-104

NUT,7/16"-14, G5

4шт.

23

D140286

LINK

- actuator to transmission, parking brake

2шт.

24

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

1шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, at transmission clutch cutout solenoid valve, Incl. Ref. 27

1шт.

28

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- selector valve hose to pressure tube, see Figure 6-56, Ref. 4, for transmission pressure tube

1шт.

29

D143702

HOSE ASSY.

HOSE - 760 mm long, selector valve to tee at pressure tube

1шт.

30

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Incl. Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 33 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

34

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- street, 90 degree

1шт.

35

D143700

HOSE ASSY.

HOSE - 38-5/8" (980 mm) long, selector valve to return, attaches to transmission dipstick tube

1шт.

36

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
