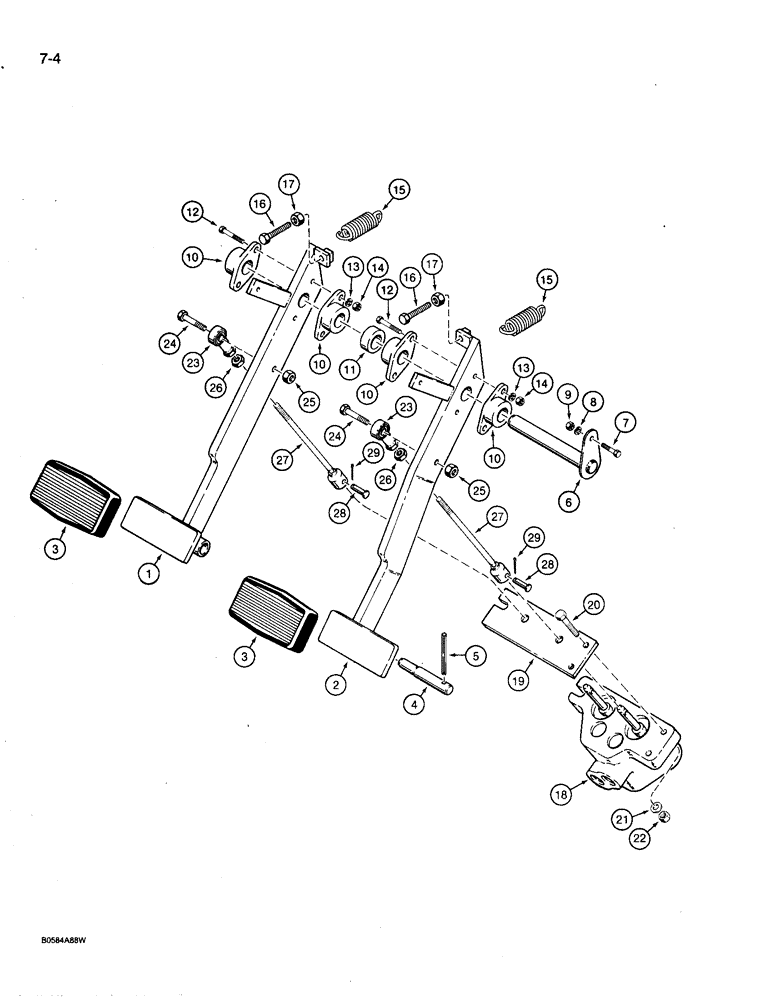

Запчасти Case 780D (7-04) - BRAKE PEDALS AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

1

D141349

PEDAL ASSY.

PEDAL - brake, left-hand

1шт.

2

D141350

PEDAL ASSY.

PEDAL - brake, right-hand

1шт.

3

97067C2

PAD

COVER - pedal, rubber

2шт.

4

A164694

PIN

- pedal lock

1шт.

5

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

6

A59452

SHAFT

- brake pedal

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- brake pedal

4шт.

11

A149212

BUSHING

SPACER - pedal

1шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

A160874

SPRING

- pedal return

2шт.

16

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

G105024

VALVE

CYLINDER ASSEMBLY - master, brake, parts list Figure 7-8

1шт.

19

A163161

GASKET

- brake master cylinder, Serial Range: attaches-firewall

1шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

22

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

3шт.

23

A32398

BALL JOINT

LINK - eye, female, 3/8"

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

2шт.

26

129-123

NUT,3/8"-24, G5

2шт.

27

A160653

ROD

- brake

2шт.

28

A67313

PIN

- clevis, brake rod to master cylinder

2шт.

29

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.
