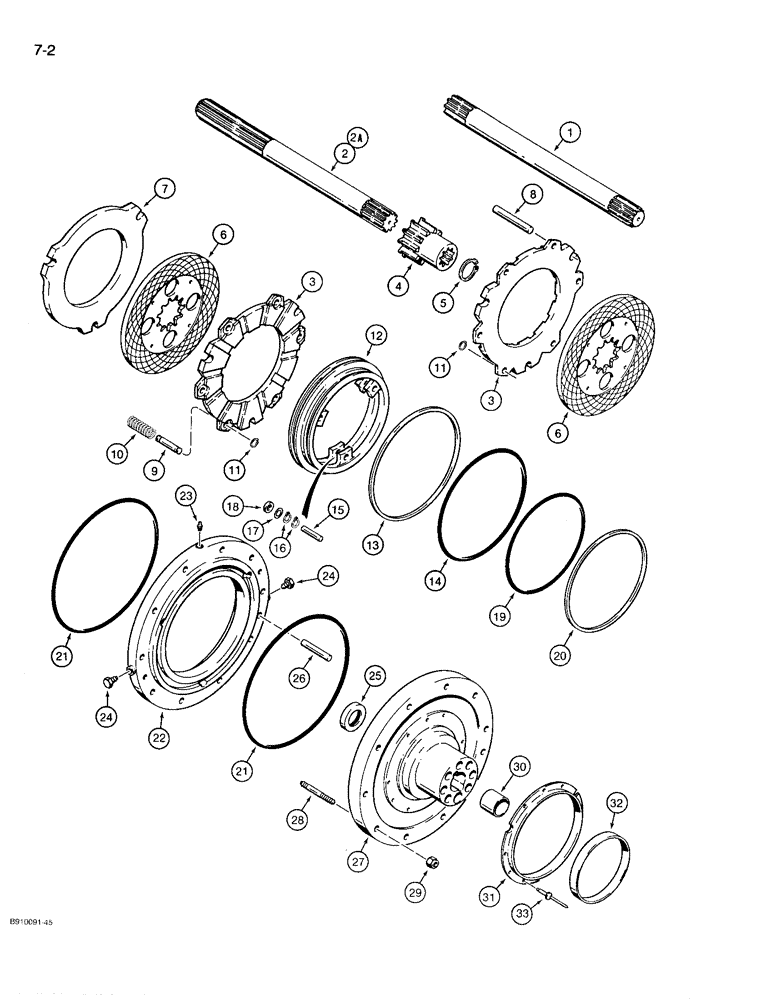

Запчасти Case 780D (7-02) - REAR AXLE, REAR BRAKES (07) - BRAKES

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, prior to P.I.N. JJG0071775, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 33

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, P.I.N. JJG0071775 and after, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 33

1шт.

1

D143011

SHAFT

- half, left-hand side

1шт.

2

D143010

SHAFT

- half, right-hand side, use on axles with axle S/N, Serial Range: prior-CB/228

1шт.

2a

D149873

SHAFT

- half, right-hand side, use on axles with axle S/N CB/228 and after

1шт.

D149873 RH half-shaft - This part nbr can be used on axles with axle SN prior to or after CB/228.

1шт.

3

D143057

PLATE

- pressure

4шт.

4

D143061

RING, COUPLING

SLEEVE - splined

2шт.

5

D143060

CIRCLIP

RING - retaining

2шт.

6

D143058

DISC

- brake, rotating

4шт.

7

D143059

PLATE

- disc, stationary

2шт.

8

D143062

DOWEL

PIN - dowel

6шт.

9

D144107

PIN

- retaining

12шт.

10

D143064

SPRING

- detent

12шт.

11

D144106

RING

- retaining

24шт.

12

D143056

PISTON

- brake

2шт.

13

D143055

OIL SEAL

RING - backup

2шт.

14

D143054

GASKET

SEAL - ring

2шт.

15

D143050

PIN

- piston retaining

6шт.

16

D143051

CIRCLIP

RING - retaining

12шт.

17

D143052

SHIM,0.10mm Thk

1шт.

18

D143053

SPACER

- pin

6шт.

19

D143076

OIL SEAL

SEAL - ring

2шт.

20

D143075

GASKET

RING - backup

2шт.

21

D143074

O-RING,11.984" ID x 12.262" OD

- brake cylinder

4шт.

22

D143078

CYLINDER

- brake

2шт.

23

D143065

PLUG

- bleed

2шт.

24

D143066

PLUG

- drain

4шт.

25

D143072

SEAL

- oil

2шт.

26

D143073

DOWEL

PIN - dowel

2шт.

27

D143068

FLANGE

SHAFT - wheel

2шт.

28

D143067

STUD

- wheel to brake cylinder

20шт.

29

K965250

NUT

- stud retaining

20шт.

30

D143071

BUSHING

- wheel shaft

2шт.

31

D143070

SHIELD

RING - wear, outer, no longer available, order Ref. 1A, seal on Figure 6-74

2шт.

32

K395138

WEAR RING

RING - wear, inner, no longer available, order Ref. 1A, seal on Figure 6-74

2шт.

33

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8 x 23/64 inch, if used

12шт.
