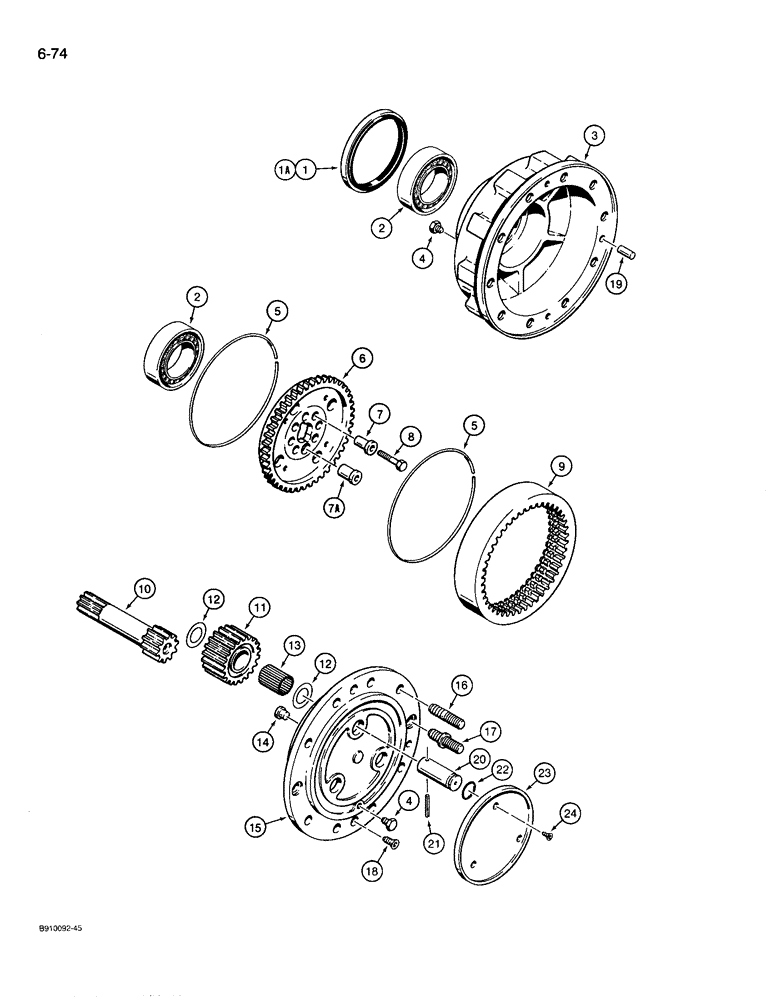

Запчасти Case 780D (6-74) - REAR AXLE, PLANETARY (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 - 7-2, Includes: Ref. 1 -24, Serial Range: -JJG0071775

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 24, Start Serial: JJG0071775

1шт.

1

K395102

OIL SEAL

- oil, hub, no longer available, order Ref. 1A seal

2шт.

1a

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16, replaces Ref. 1, seal on this Figure and Ref. 31 and 32, wear rings on Figure 7-2

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

D143084

HUB

- wheel attaching

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

4шт.

5

D142979

RING, SNAP

RING - lock

4шт.

6

D142980

CARRIER

HUB - ring gear

2шт.

7

K395105

RING

BUSHING - 20 mm O.D., centering

14шт.

7a

K395104

RING

BUSHING - 24 mm O.D., centering

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

9

D142981

GEAR WHEEL

GEAR - ring, planetary

2шт.

10

D143082

SHAFT

- pinion

2шт.

11

D143081

PINION

GEAR - pinion, planetary

6шт.

12

D142984

WASHER

- thrust, pinion gear

12шт.

13

D143080

BEARING, NEEDLE

BEARING - needle, planetary gear

180шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - thrust

2шт.

15

D143083

CARRIER

COVER - planetary

2шт.

D143083 planetary cover - This now subs to the following 3 parts: 109643A1 pin, 109642A1 pin 6 mm, and 108053A1 carrier

1шт.

16

D142986

STUD,88mm L

- special, without collar

16шт.

17

D142987

STUD

- special, with collar, for recessed bolt holes

4шт.

18

K395029

SCREW

- special, planetary cover

4шт.

19

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

2шт.

20

109642A1

PIN, SPLIT (COTTER)

SHAFT - pinion gear, (Replaces D142989)

6шт.

D142989 shaft - Replaced by part nbr 109642A1 6 mm pin (not a sub). Not required to order when ordering Ref. 15 since the 3 numbers it subs to include this.

1шт.

21

109643A1

LARGE PIN

PIN - split, pinion gear shaft, (Replaces K260197)

6шт.

K260197 pin - Replaced by part nbr 109643A1 pin (not a sub). Not required to order when ordering Ref. 15 since the 3 numbers it subs to include this.

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- pinion gear shaft

6шт.

23

D150115

COVER

PLATE - planetary cover, Replaces D143079)

2шт.

Ref #23 - D143079 planetary cover plate

1шт.

24

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

6шт.

M20704

ADHESIVE

SEALANT - 3 oz. (89 ml) of sealant in a tube, planetary cover to hub, not shown

1шт.
