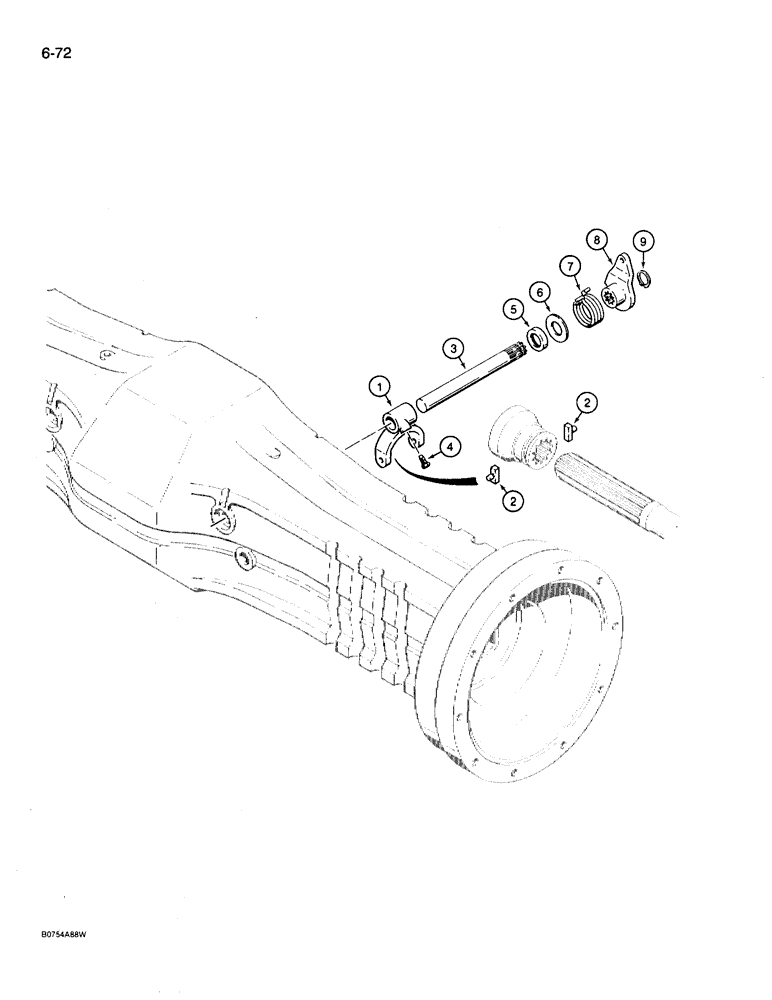

Запчасти Case 780D (6-72) - REAR AXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 9, Serial Range: -JJG0071775

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 9, Start Serial: JJG0071775

1шт.

1

D143012

FORK

BRACKET - lock mounting

1шт.

2

D143015

PAD

RETAINER - bracket

2шт.

3

D143013

SHAFT

- differential lock

1шт.

4

D143014

SCREW

- set, shaft retaining

1шт.

5

D143023

SEAL

- oil

1шт.

6

D143022

WASHER

- spring retainer

1шт.

7

D143021

SPRING

- detent, no longer used, not required

1шт.

8

D143016

LEVER

- differential lock

1шт.

9

D143020

CIRCLIP

RING - retaining

1шт.
