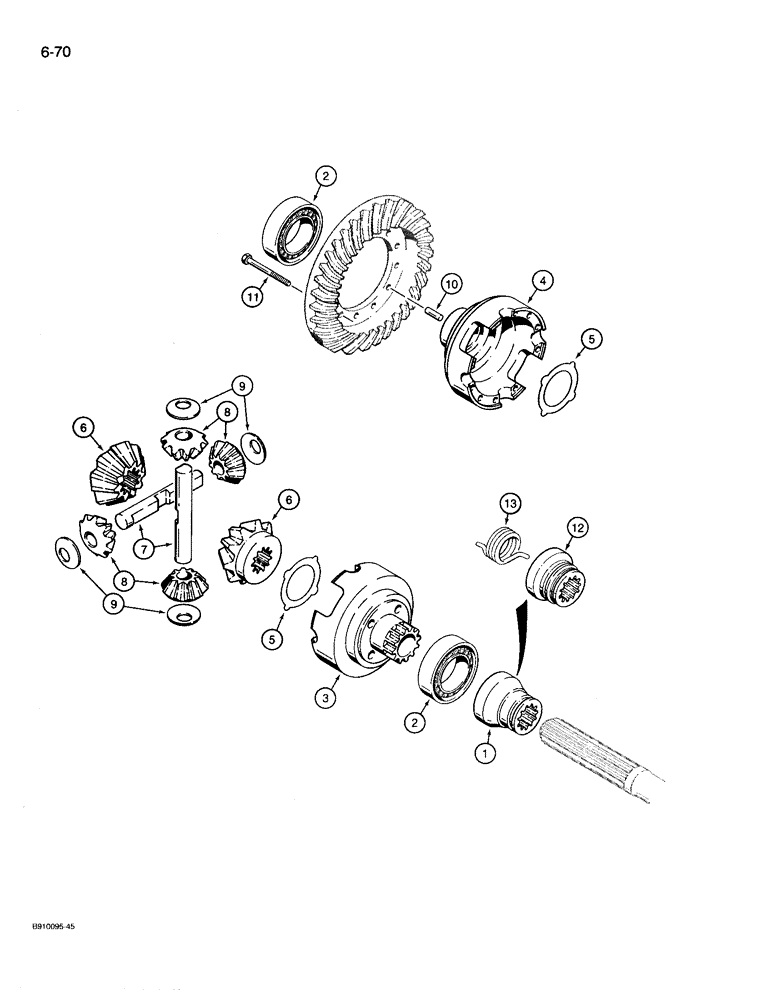

Запчасти Case 780D (6-70) - REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, prior to P.I.N. JJG0071775, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 13

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, P.I.N. JJG0071775 and after, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 13

1шт.

1

D143009

SLEEVE

- differential box to right-hand shaft, A186455 axle

1шт.

2

D143029

BEARING

- roller

2шт.

D143030

TERMINAL BOX

CASE ASSEMBLY - differential, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - differential, splined end

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

5

D142972

WASHER

- thrust

2шт.

6

D143027

PINION

GEAR - side, differential

2шт.

7

D142970

SHAFT

- pinion gear

2шт.

8

D142969

SUN GEAR

GEAR - pinion

4шт.

9

D142968

WASHER

- thrust, pinion gear

4шт.

10

D143033

DOWEL

PIN - centering, ring gear to differential box

2шт.

11

S300976

BOLT,M12 x 1.5 x 90mm

BOLT - special, ring gear to differential box

10шт.

12

D150112

SLEEVE

- differential box to right-hand shaft, D147493 axle

1шт.

13

D150825

SPRING

- return, internal, D147493 axle, see Figure 6-64 Ref. 20, for spring used with A186455 axle, (Replaces D150114)

1шт.

D150827

SLEEVE

SPRING GUIDE, for Ref. 13, the axle shaft goes through the D150827.

1шт.

D150827

SLEEVE

24 mm overall length, 46 mm O.D. w/ 55 mm O.D lip, 36 mm I.D., not shown

1шт.
