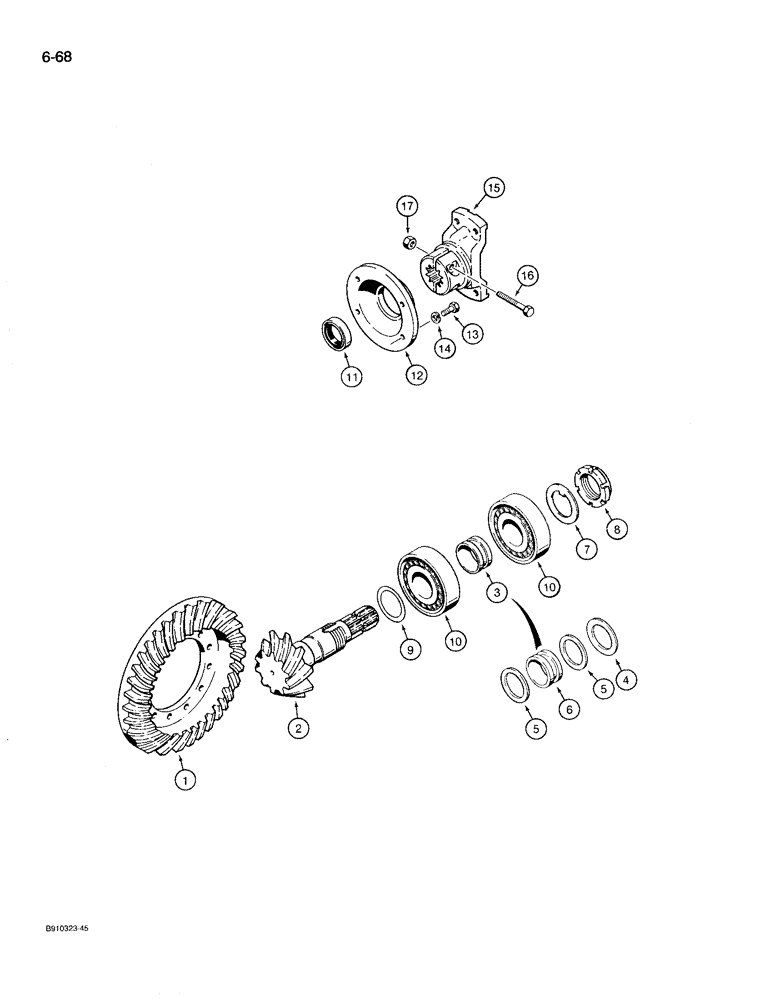

Запчасти Case 780D (6-68) - REAR AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 17, Serial Range: -JJG0071775

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 - 7-2, Includes: Ref. 1 - 17, Start Serial: JJG0071775

1шт.

D143024

GEAR, BEVEL

GEAR SET - ring and pinion, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

D142998

SPACER

- bearing, no longer available, order Ref. 4 and 5 washers, and Ref. 6 spacer

1шт.

4

D150105

WASHER

- special

1шт.

5

S300977

WASHER

- special, bearing spacer

2шт.

6

D150104

SPACER

- collapsible, bearing

1шт.

7

D146685

WASHER

- special

1шт.

8

D143000

NUT

RING - nut, pinion gear

1шт.

9

D142953

SHIM,2.50mm Thk

1шт.

9

D142954

BLOCK

SHIM - 2.60 mm thick

1шт.

9

D142955

SHIM,2.70mm Thk

1шт.

9

D142956

SHIM,2.80mm Thk

1шт.

9

D142957

SHIM,2.90mm Thk

1шт.

9

D142958

SHIM,3.00mm Thk

1шт.

9

D142959

SHIM,3.10mm Thk

1шт.

9

D142960

BLOCK

SHIM - 3.20 mm thick

1шт.

9

D142961

SHIM,3.30mm Thk

1шт.

9

D142962

SHIM,3.40mm Thk

1шт.

10

D142963

BEARING

- roller, pinion gear

2шт.

11

N8895

OIL SEAL

- oil

1шт.

12

D143025

COVER

- differential carrier

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm, cover mounting

4шт.

14

892-1108

LOCK WASHER,M8

4шт.

15

D143026

FLANGE

YOKE - flange

1шт.

16

D142965

SCREW

BOLT - hex head, 10 mm x 55 mm, yoke

2шт.

17

K965414

NUT

- hex, self-locking, 10 mm - 1.25, special

2шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, differential carrier cover to carrier, not shown

1шт.
