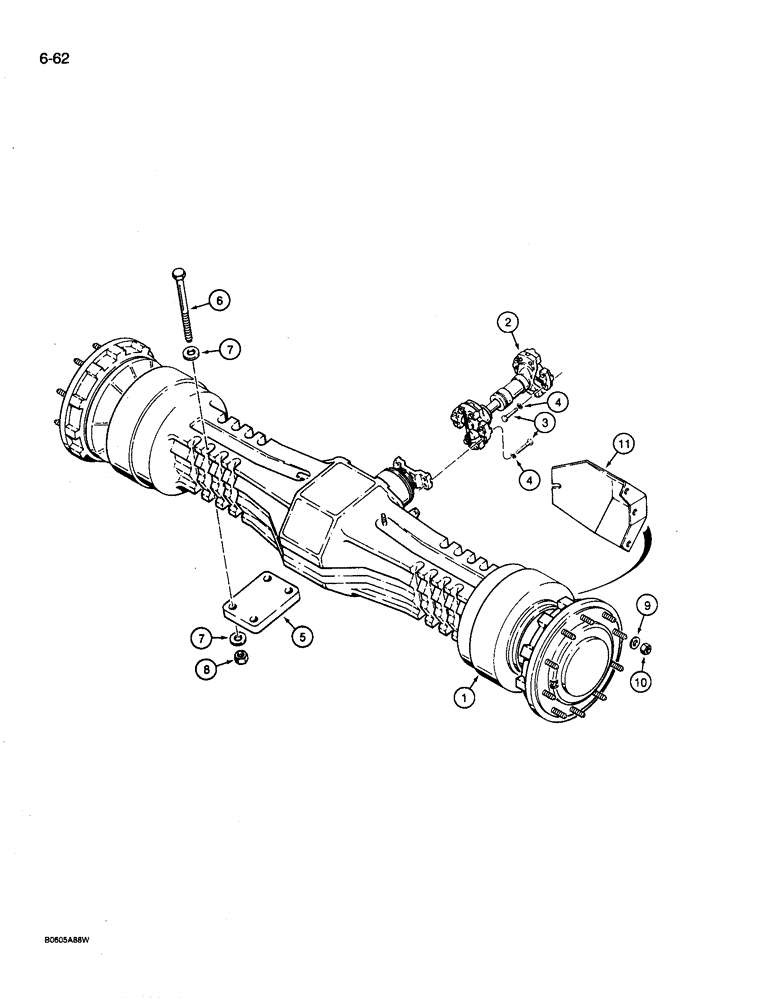

Запчасти Case 780D (6-62) - REAR DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSEMBLY - rear, for correct assembly and components, see parts list Figures 6-66 - 7-2

1шт.

2

D140085

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, parts list Figure 6-60, Includes: Ref. 3

1шт.

3

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8, phosphate plated, included with D140085 drive shaft

16шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

D138844

PAD

- axle mounting, not shipped with axle, order separately

2шт.

6

26-14180

BOLT,Hex, 7/8" - 9 x 11-1/4", Gr 8

- hex head, 7/8" - 9 NC x 11-1/4", grade 8

8шт.

7

196-33

WASHER,29/32" x 1 1/2" x .134", HDN

- flat, 7/8", plated, hardened

16шт.

8

S104373

NUT

- hex, 7/8" - 9 NC, plated, grade 8

8шт.

9

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

- flat, hardened, special

20шт.

10

D138492

NUT,M22 X 1.5 - 6 HVY HEX

- hex, special

20шт.

11

D140403

GUARD ASSY.

GUARD - brake tube, uses existing lock nuts from axle brake housing

2шт.
