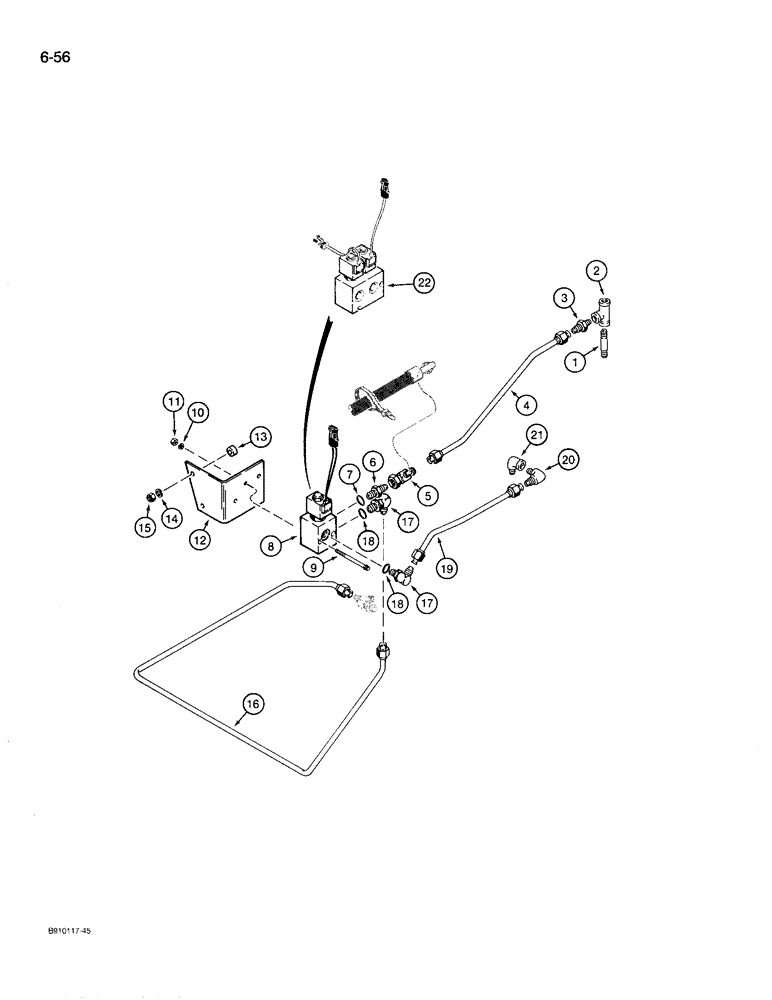

Запчасти Case 780D (6-56) - TRANSMISSION CLUTCH CUTOUT HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

221-138

NIPPLE, LUBE,Nipple, 1/4" NPT x 2 1/2"

NIPPLE - 1/4" NPT x 2-1/2", at transmission charge pump pressure port

1шт.

2

221-422

TEE,Pipe, 1/4" NPT

- 1/4" NPT, see Ref. 6 on Figure 4-18 for attaching clutch pressure switch

1шт.

3

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

4

D143720

TUBE ASSY.

TUBE - pressure

1шт.

5

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- pressure tube to solenoid valve, see Figure 7-12 for hose connection into parking brake hydraulic circuit

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 7

1шт.

8

D143719

VALVE

ASSEMBLY - solenoid, transmission clutch cutout, attaches to rear harness, parts list Figure 6-58, Serial Range: -JJG0071816

1шт.

9

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4" - 20 NC x 3"

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

12

D147911

BRACKET

- solenoid mounting, Serial Range: mounts-transmission

1шт.

13

A28893

BUSHING

SPACER - solenoid bracket

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

129-104

NUT,7/16"-14, G5

2шт.

16

D141368

TUBE ASSY.

TUBE - return, attaches to 218-5578 tee, Ref. 5 on Figure 6-54

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 18

2шт.

19

D146147

TUBE

- clutch cutout, transmission control, Serial Range: valve-solenoid

1шт.

20

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

21

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, at transmission control valve 90º, 1/8"-27, NPT

1шт.

22

D147091

VALVE

ASSEMBLY - dual solenoid, transmission clutch cutout and four wheel drive engagement/disengagement, attaches to rear harness, parts list Figure 6-58, Start Serial: JJG0071816

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
