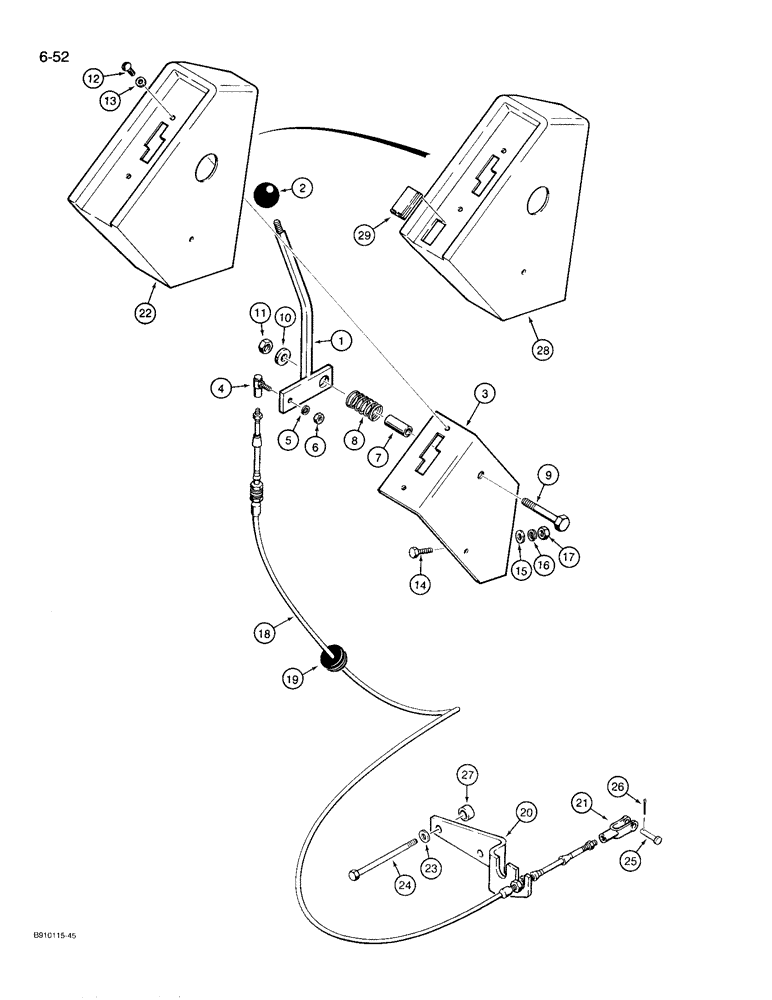

Запчасти Case 780D (6-52) - TRANSMISSION RANGE CONTROL (06) - POWER TRAIN

1

L101666

LEVER

- control, range control

1шт.

2

A18852

KNOB

- control lever

1шт.

3

L105156

BRACKET

- mounting, range control lever

1шт.

4

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, control lever

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

7

L108369

BUSHING

SPACER - control lever mounting

1шт.

8

L101655

VALVE SPRING

SPRING - detent

1шт.

9

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

10

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated, hardened

1шт.

11

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval Phillips, No. 10 NC x 3/4 inch, black

3шт.

13

F43576

WASHER

- special

3шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

L112451

CABLE

- transmission range control

1шт.

19

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

20

D144496

BRACKET

- cable shift

1шт.

21

A18709

CLEVIS

- cable

1шт.

22

L111760

HOUSING

CONSOLE - range control lever, no longer available, order Ref. 28 console and Ref. 29 plug on models, Serial Range: -JJG0071802

1шт.

23

195-105

WASHER,7/16"

- flat, , plated 7/16"

2шт.

24

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

25

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

27

D56140

BUSHING

SPACER - bracket

2шт.

28

D147632

COVER

CONSOLE - range control lever

1шт.

29

245918C1

LENS

PLUG - console, rocker switch opening, use with D147632, Ref. 28, console on models with mechanical four wheel drive controls, Start Serial: JJG0071802

1шт.
