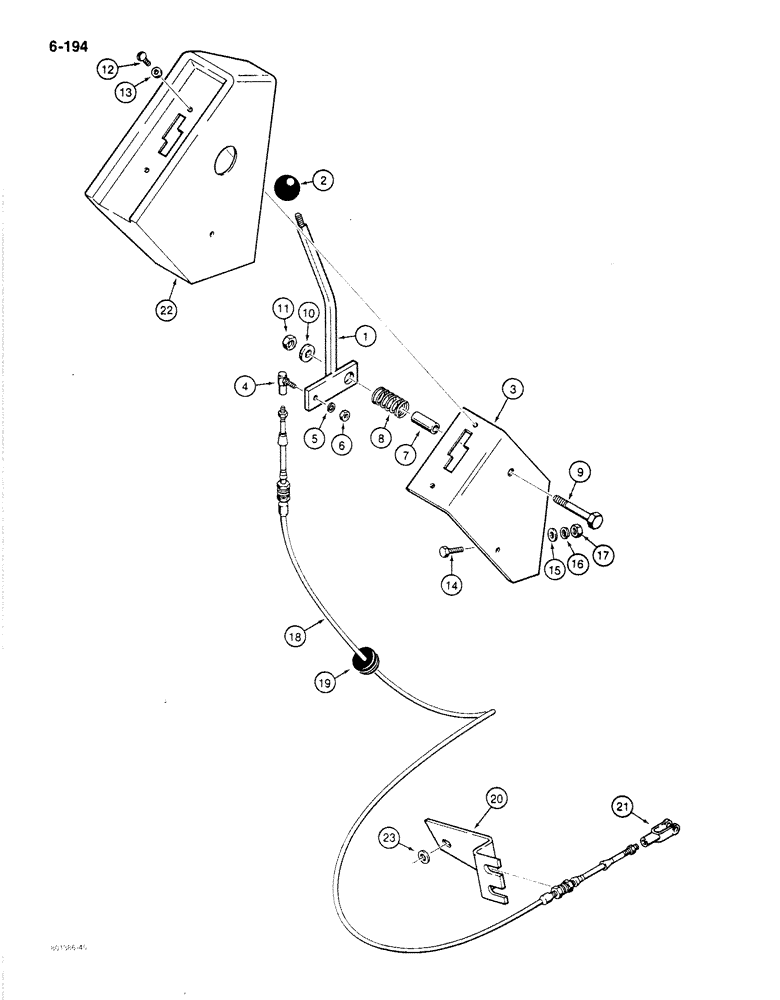

Запчасти Case 780C (6-194) - TRANSMISSION RANGE CONTROL (06) - POWER TRAIN

1

L101666

LEVER

control, range control

1шт.

2

A18852

KNOB

control lever

1шт.

3

L105156

BRACKET

mounting, range control lever

1шт.

4

A10329

BALL JOINT,1/4" - 28 x 1"

control lever

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

7

L108369

BUSHING

control lever mounting

1шт.

8

L101655

VALVE SPRING

detent

1шт.

9

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

10

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, 1/2" ID x 1" OD, plated

1шт.

11

131-1116

LOCK NUT,1/2"-13, GB

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

machine, oval Phillips head, No. 10-24 NC x 3/4", black

3шт.

13

F43576

WASHER

special

3шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

16

192-21

LOCK WASHER,3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

18

L112451

CABLE

transmission range control

1шт.

19

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

cable

1шт.

20

L101551

BRACKET

SPARE PART cable shift

1шт.

21

A18709

CLEVIS

cable

1шт.

22

L111760

HOUSING

CONSOLE - range control lever

1шт.

23

1950105

WASHER - flat, 7/16", plated

2шт.
