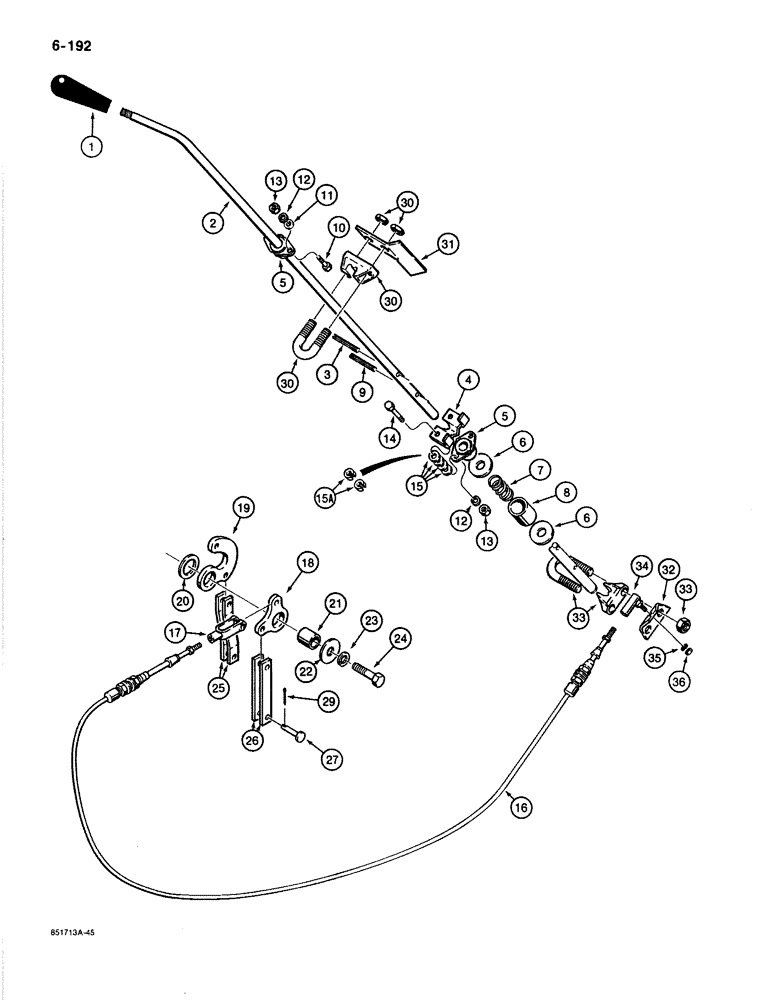

Запчасти Case 780C (6-192) - TRANSMISSION CONTROLS FORWARD AND REVERSE (06) - POWER TRAIN

1

L55721

HANDLE

shift lever

1шт.

2

L108604

LEVER

shift, forward and reverse

1шт.

3

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

4

L103553

PLATE

BRACKET - forward and reverse lever

1шт.

5

H755785

FLANGED BEARING,15.88mm ID

forward and reverse lever

2шт.

6

196-31

WASHER

flat, 3/4" ID x 1-3/8" OD, plated, hardened

2шт.

7

L74517

VALVE SPRING

forward and reverse

1шт.

8

L12479

SLEEVE

spring

1шт.

9

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

1/4" x 1 1/2", Slotted

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

195-102

WASHER,1/4"

flat, plated

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

195-102

WASHER,1/4"

flat, plated, if used

8шт.

15a

D123465

SPACER

split, if used

2шт.

16

D127025

CABLE PULLING GRIP

transmission shuttle control

1шт.

17

A18709

CLEVIS

cable end

1шт.

18

L101546

LEVER

shuttle

1шт.

19

L101547

LEVER

range

1шт.

20

195-2102

WASHER,1 1/16" x 1 1/2" x .032"

flat, 1", special shim

1шт.

21

L101545

BUSHING

bellcrank

1шт.

22

195-2053

WASHER,17/32" x 1 1/2" x .083"

flat, 1/2", special

1шт.

23

192-23

LOCK WASHER,1/2"

1шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

25

L101554

DRAG LINK

range control

2шт.

26

L101553

DRAG LINK

shuttle control

2шт.

27

141-53

CLEVIS PIN,5/16" x .940"

6шт.

29

132-320

COTTER PIN,3/32" x 3/4"

6шт.

30

L79112

CLAMP

transmission control, includes U-bolt and nuts

1шт.

31

L108304

PLATE ASSY.

shuttle stop

1шт.

32

L108603

BRACKET

shuttle cable

1шт.

33

L79112

CLAMP

shuttle cable, includes U-bolt and nuts

1шт.

34

A10329

BALL JOINT,1/4" - 28 x 1"

shuttle cable

1шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

36

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.
